LM2596 DC-DC Buck Converter Step Down Power Supply Module with Digital Voltage Display
LM2596 DC-DC Buck Converter Step Down Power Supply Module with Digital Voltage Display
Features
Input voltage range:4 40VDC
Output voltage range:1.25-37VDC adjustable
Output current:2A
voltmeter range: 0 to 40V, error 0.1V
Input reverse polarity protection
Built in output short protection function
Built in thermal shutdown function
L x W x H =6.1*3.4*12 cm
Weight: 22g
LED digital voltmeter tube, the accuracy is adjustable function, can be aimed at your multimeter adjustable accurate.
Press the right key to let the display show the input or output voltage. when the right OUT led light, it shows output, the left IN led show input.
MH CD-42 Charge Discharge Module

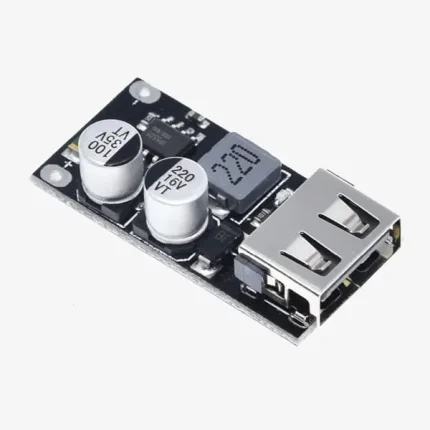

Mh-kc24 Qc3.0 Qc2.0 Usb Quick Charging Board Module Dc To Dc Buck Converter In Pakistan
Input voltage range: 6V-32V
Output voltage: default 5V, automatically adjust between 3-12V after triggering fast charge
Output power: up to 24W (5V/3.4A, 9V/2.5A, 12V/2A, etc.)
Output voltage cable compensation function
Conversion efficiency: 90%-97%
Support multiple fast charging protocols
Input overvoltage and under-voltage protection
Input overcurrent protection
Output overcurrent, short circuit protection
Machine over temperature protection Support fast charge agreement
Support DCP protocol, BC1.2, Apple Samsung protocol
Support Huawei Fast Charge Protocol FCP/SCP
Support Huawei Fast Charge Protocol AFC
Support Spreadtrum Fast Charge Protocol SFCP
Support Qualcomm QC2.0 and 3.0
Support MTK PE1.1/PE2.0
Mini Mp1584en Dc-dc Buck Adjustable Step Down Module 4.5v-28v Input 0.8v-20v Output
Mini MP1584EN DC-DC BUCK Adjustable Step Down Module 4.5V-28V Input 0.8V-20V Output
The MP1584 is a high frequency step-down switching regulator with an integrated internal high-side high voltage power MOSFET
Specifications:
Model:MP1584
Name: DC-DC step-down module
Input Voltage: 4.5V ~ 28V
Output voltage: 0.8V ~ 20V
Output Current: 3A (Max)
Conversion efficiency: 96% (maximum)
Output Ripple: <30mV
Switching frequency: 1.5MHz (highest) typically 1MHz
Operating Temperature: -45°C ~ +85°C
Size: 22mm * 17mm (L * W )
Application areas:
DIY mobile power
monitor power supply
power buggies
camera power supply
car power
communications equipment supply,etc.
MT3608 DC-DC Step Up Boost Converter Module 28V 2A

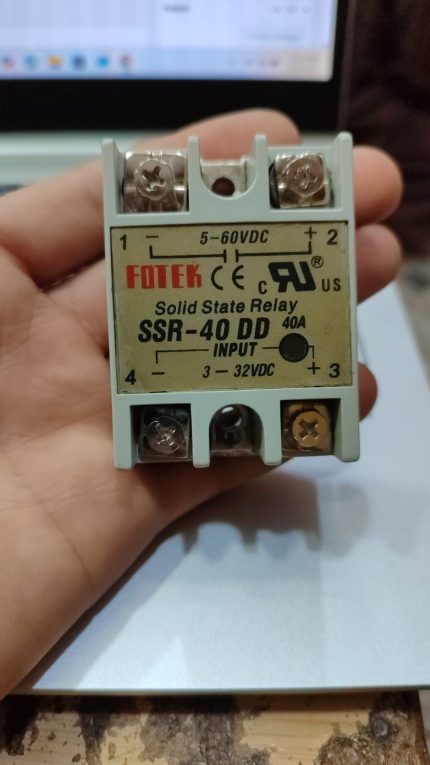

Oragnal Solid State Relay Dc Output Ssr 40dd
Przetwornica step-up 4V-36V 10W 2A XL6007
Przetwornica podwyższająca napięcie typu step-up na układzie XL6007 pozwalająca z napięcia wejściowego w zakresie od 4V do 24V wygenerować napięcie na wyjściu między 4V a 36V.
Posiada wygodną regulację napięcia wyjściowego potencjometrem. Ma kompaktowe wymiary.
Specyfikacja:
podwyższająca typ step-up
napięcie wejściowe od 4V do 24V
napięcie wyjściowe od 4V do 36V
maksymalna moc 10W
maksymalny prÄ…d 2A
wymiary 30mm x 15mm x 10mm
QC MOBILE POWER BOOST MODULE 5V 2.4A CHARGER CIRCUIT BOARD LCD DISPLAY
nput charging voltage: DC 5V 1A
2>.Input battery voltage:DC 3.7V-4.2V Polymer Rechargeable Lithium Battery
3>.Input type:Type-C/MicroUSB/Lighting
4>.Output channel:2CH
5>.Output voltage:5V2.4A
6>.Operating Temperature:-20℃~85℃
7>.Operating Humidity:5%~95%RH
8>.Module Size:68*27*11mm
Feature:
1>.Support discharge while charging
2>.Support dual USB output
3>.Support 3kinds input type
4>.Support QC fast charge
5>.Support display screen

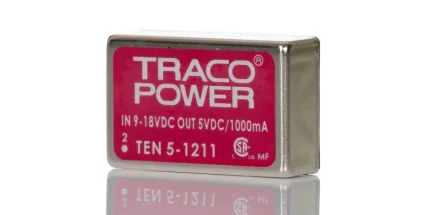

TEN 5-1211 Traco Power DC TO DC Price in Pakistan
TP4056 1A Li-Ion Battery Charging Board Micro USB with Current Protection BMS
This 3.7V Battery Charger TP4056 module is made for charging rechargeable lithium batteries using the constant-current/constant-voltage (CC/CV) charging method. In addition to safely charging a lithium battery, TP4056 BMS Board also provides the necessary protection required by lithium batteries. The TP4056 is suitable for USB power and adapter power supplies. Due to the internal PMOSFET architecture and anti-reverse charging path, no external isolation diodes are required.
Specification of TP4056 1A Li-Ion Battery Charging Board Micro USB with Current Protection BMS:
Charge module: Linear charging.
Current:1A adjustable.
Charge precision:1.5%.
Input voltage:4.5V-5.5V.
Full charge voltage:4.2V ± 1%
Led indicator: red is charging Green is fully charged.
Input interface:micro USB/mini usb/type-c usb
Work temperature:-10° to +85°.
Inversed polarity: NO.
TP4056 C Type USB Port 1A 18650 Lithium Battery Charging Board Charger Module
Input voltage: 5V
Load cut-off voltage: 4.2V ± 1%
Maximum charging current: 1000mA
Excessive battery discharge protection voltage: 2.5V
Battery overcurrent protection current: 3A
Panel size: 17.16 mm x 26.17 mm
Charge precision: 1.5%.
Led indicator: red is charging Green is full charged.
Input interface: Type-C
Work temperature- -10° to +85°.
Reverse polarity protection: No
Size: 25X19X10mm.
works with all types of lipo & lithium batteries like 18650
Connect Battery with B+ & B-
Connect Battery load OUT+ & OUT – (this is uninterrupted power supply
