Type
Description
Select All
Category
Power Supplies – Board Mount
DC DC Converters
Mfr
XP Power
Series
IE (1W)
Packaging
Tube
Part Status
Active
Type
Isolated Module
Number of Outputs
1
Voltage – Input (Min)
2.97V
Voltage – Input (Max)
3.63V
Voltage – Output 1
9V
Voltage – Output 2
–
Voltage – Output 3
–
Current – Output (Max)
111mA
Power (Watts)
1 W
Voltage – Isolation
3 kV
Applications
ITE (Commercial)
Features
–
Operating Temperature
-40°C ~ 85°C
Efficiency
74%
Mounting Type
Through Hole
Package / Case
4-SIP Module
Size / Dimension
0.46″ L x 0.24″ W x 0.50″ H (11.7mm x 6.0mm x 12.7mm)
Control Features
–
Base Product Number
IE0309
-6%
1470-2641-5-ND Isolated Module DC DC Converter 1 Output 15V 67mA 4.5V - 9V Input
Original price was: ₨ 2550.₨ 2375Current price is: ₨ 2375.
1470-1525-5-ND Isolated Module DC DC Converter 2 Output 5V -5V 100mA, 100mA 21.6V - 26.4V Input
Original price was: ₨ 2575.₨ 2275Current price is: ₨ 2275.

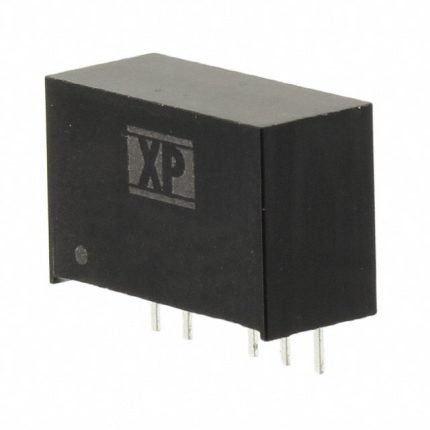

1470-1392-5-ND Isolated Module DC DC Converter 1 Output 9V 111mA 2.97V – 3.63V Input
Original price was: ₨ 2575.₨ 2425Current price is: ₨ 2425.
