Type
Description
Select All
Category
Power Supplies – Board Mount
DC DC Converters
Mfr
XP Power
Series
IV (1W)
Packaging
Tube
Part Status
Active
Type
Isolated Module
Number of Outputs
2
Voltage – Input (Min)
4.5V
Voltage – Input (Max)
5.5V
Voltage – Output 1
15V
Voltage – Output 2
-15V
Voltage – Output 3
–
Current – Output (Max)
33mA, 33mA
Power (Watts)
1 W
Voltage – Isolation
3 kV
Applications
ITE (Commercial)
Features
–
Operating Temperature
-40°C ~ 85°C
Efficiency
76%
Mounting Type
Through Hole
Package / Case
7-SIP Module, 5 Leads
Size / Dimension
0.77″ L x 0.24″ W x 0.39″ H (19.5mm x 6.0mm x 10.0mm)
Control Features
–
Standard Number
62368-1
Base Product Number
IV0515
-17%
1470-2437-5-ND Isolated Module DC DC Converter 1 Output 12V 20.8mA 43.2V - 52.8V Input
Original price was: ₨ 2750.₨ 2475Current price is: ₨ 2475.
1470-2402-5-ND Isolated Module DC DC Converter 1 Output 24V 42mA 10.8V - 13.2V Input
Original price was: ₨ 2250.₨ 1975Current price is: ₨ 1975.

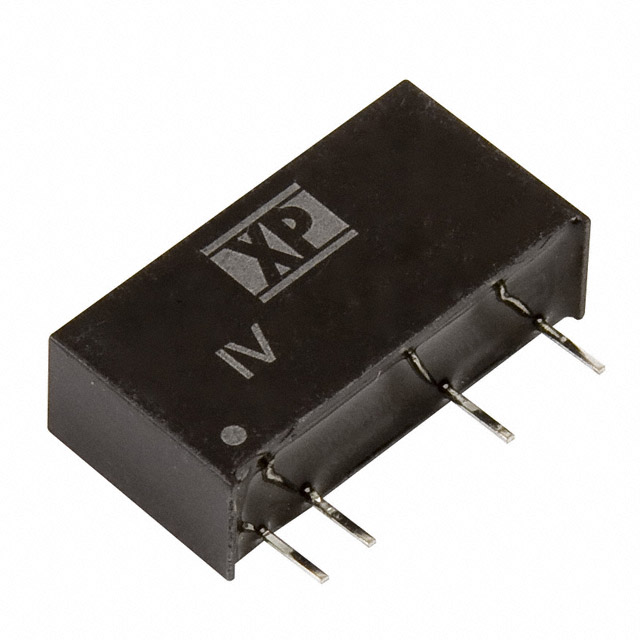

1470-1605-5-ND Isolated Module DC DC Converter 2 Output 15V -15V 33mA, 33mA 4.5V – 5.5V Input
Original price was: ₨ 3250.₨ 2700Current price is: ₨ 2700.
1470-1605-5-ND Isolated Module DC DC Converter 2 Output 15V -15V 33mA, 33mA 4.5V – 5.5V Input
Description
Reviews (0)
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
