Type
Description
Select All
Category
Power Supplies – Board Mount
DC DC Converters

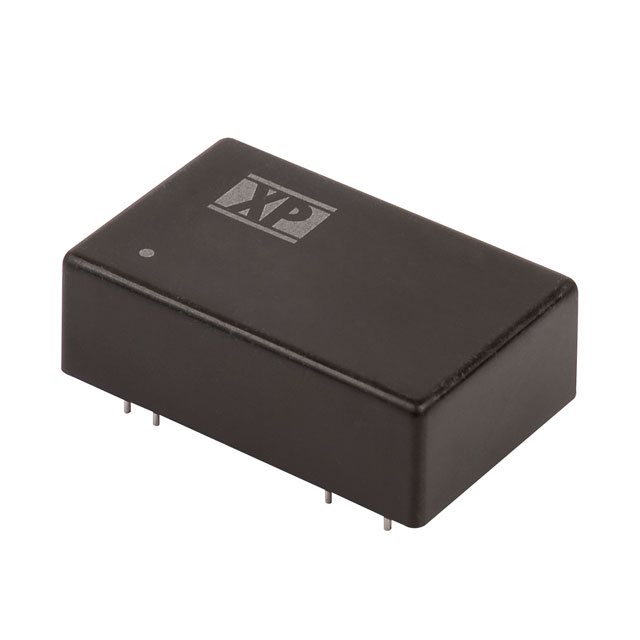

Mfr
XP Power
Series
JCE (6W)
Packaging
Tube
Part Status
Active
Type
Isolated Module
Number of Outputs
2
Voltage – Input (Min)
9V
Voltage – Input (Max)
18V
Voltage – Output 1
3.3V
Voltage – Output 2
-3.3V
Voltage – Output 3
–
Current – Output (Max)
909mA, 909mA
Power (Watts)
6 W
Voltage – Isolation
1.5 kV
Applications
ITE (Commercial)
Features
OCP, SCP, UVLO
Operating Temperature
-40°C ~ 100°C
Efficiency
76%
Mounting Type
Through Hole
Package / Case
24-DIP Module, 8 Leads
Size / Dimension
1.25″ L x 0.80″ W x 0.41″ H (31.8mm x 20.3mm x 10.4mm)
Standard Number
62368-1
-10%
1470-2487-5-ND 2 Output 12V -12V 42mA, 42mA 43.2V - 52.8V Input
Original price was: ₨ 3700.₨ 3450Current price is: ₨ 3450.
1470-2420-5-ND 2 Output 9V -9V 111mA, 111mA 43.2V - 52.8V Input
Original price was: ₨ 4000.₨ 3750Current price is: ₨ 3750.
1470-1920-5-ND 2 Output 3.3V -3.3V 909mA, 909mA 9V – 18V Input
Original price was: ₨ 6500.₨ 5850Current price is: ₨ 5850.
Description
Reviews (0)
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products

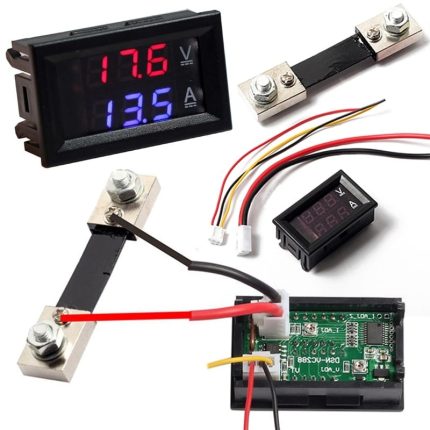

2in1 DC 0-100V Voltmeter Ammeter With DC 100A 75mV Ampere Shunt Dual 0.28″ Red Blue Voltage Detector Current Indicator
Power Supply (Measure Voltage): DC 4.5-30V
Measure Voltage Range:0-100v
Measure voltage < 10V,Min Resolution: 0.01V
Measure voltage >10V, Min resolution: 0.1V
Measure Current: 100A forward current ( more than 10A need shunt)
Current Resolution: 0.01A
Operating Current: <20mA
Display: 0.28 "LED monochrome（red and red)
Dimensions: 48 x 29 x 21 mm
Cutting Size: 45 x 26 mm
Measurement rate: ≥ 500mS / times
Accuracy: 1% (± 1 digit )
Operating Temperature: -10°c ~ +65°c
Operating Humidity: 10 ~ 80% (non-condensing)
Working pressure: 80 ~ 106kP
5A XL4015 Module Adjustable Step Down Buck Converter
Module nature: non-isolated step-down module
Rectification: Non-synchronous rectification
Input voltage: 5V-32V
Output voltage: 0.8V-30V
Output current: adjustable Z large 5A
Conversion efficiency: 95% (Z high)
Switching frequency: 300KHz
Output ripple: 50mV (Z large) 20M bandwidth
Load regulation: 0.5% Voltage regulation: 2.5%
Operating temperature: -40 C to + 85 C

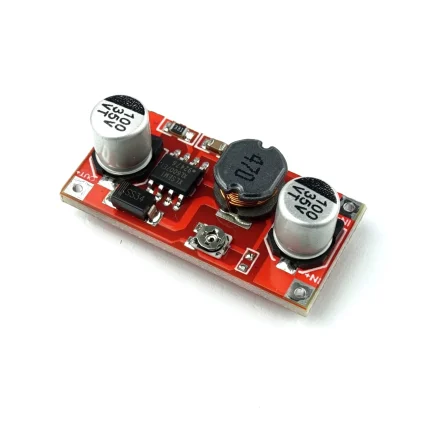

Przetwornica step-up 4V-36V 10W 2A XL6007
