Type
Description
Select All
Category
Power Supplies – Board Mount
DC DC Converters
Mfr
XP Power
Series
IE (1W)
Packaging
Tube
Part Status
Active
Type
Isolated Module
Number of Outputs
1
Voltage – Input (Min)
2.97V
Voltage – Input (Max)
3.63V
Voltage – Output 1
9V
Voltage – Output 2
–
Voltage – Output 3
–
Current – Output (Max)
111mA
Power (Watts)
1 W
Voltage – Isolation
1 kV
Applications
ITE (Commercial)
Features
–
Operating Temperature
-40°C ~ 85°C
Efficiency
74%
Mounting Type
Through Hole
Package / Case
4-SIP Module
Size / Dimension
0.46″ L x 0.24″ W x 0.40″ H (11.7mm x 6.0mm x 10.2mm)
Control Features
–
Base Product Number
IE0309
-13%
1470-2471-5-ND Isolated Module DC DC Converter 2 Output 24V -24V 21mA, 21mA 4.5V - 5.5V Input
Original price was: ₨ 2350.₨ 2150Current price is: ₨ 2150.
1470-2442-5-ND Isolated Module DC DC Converter 1 Output 9V 222mA 43.2V - 52.8V Input
Original price was: ₨ 2250.₨ 1950Current price is: ₨ 1950.
1470-2390-5-ND Isolated Module DC DC Converter 1 Output 9V 111mA 2.97V – 3.63V Input
Original price was: ₨ 2250.₨ 1950Current price is: ₨ 1950.
Description
Reviews (0)
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
Cc-cv Xl4016 9a Dc To Dc Adjustable Buck Converter
he DC-DC Step-Down 9A XL4016 voltage converter has the function of delivering a constant output voltage lower than the input voltage against variations in the input or load voltage. It supports output currents of up to 9A, input voltage between 8V to 40V and output voltage between 1.25V to 36V. The output voltage is selected by a multiturn potentiometer

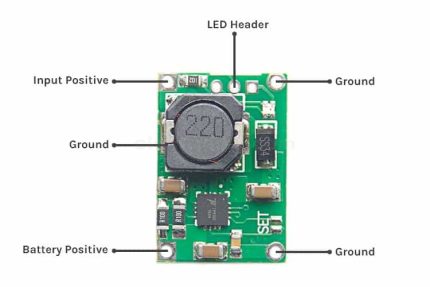

HW-370 TP5100 2A Li Ion Battery Charger Module
P5100 charger module is a 2A Lithium-Ion 18650 Battery Charger Module is a double switch buck 8.4V, single cell 4. 2V lithium battery charge management chip. TP 5100 module is ultra-compact QFN16 package and simple external circuit, making it ideal for portable equipment so large current charging management applications. Meanwhile, it’s built-in input overcurrent, under voltage protection, over-temperature protection, short circuit protection, battery temperature monitoring, reverse battery protection.
LM2596 DC-DC Buck Converter Step Down Power Supply Module with Digital Voltage Display
LM2596 DC-DC Buck Converter Step Down Power Supply Module with Digital Voltage Display
Features
Input voltage range:4 40VDC
Output voltage range:1.25-37VDC adjustable
Output current:2A
voltmeter range: 0 to 40V, error 0.1V
Input reverse polarity protection
Built in output short protection function
Built in thermal shutdown function
L x W x H =6.1*3.4*12 cm
Weight: 22g
LED digital voltmeter tube, the accuracy is adjustable function, can be aimed at your multimeter adjustable accurate.
Press the right key to let the display show the input or output voltage. when the right OUT led light, it shows output, the left IN led show input.
Mini Mp1584en Dc-dc Buck Adjustable Step Down Module 4.5v-28v Input 0.8v-20v Output
Mini MP1584EN DC-DC BUCK Adjustable Step Down Module 4.5V-28V Input 0.8V-20V Output
The MP1584 is a high frequency step-down switching regulator with an integrated internal high-side high voltage power MOSFET
Specifications:
Model:MP1584
Name: DC-DC step-down module
Input Voltage: 4.5V ~ 28V
Output voltage: 0.8V ~ 20V
Output Current: 3A (Max)
Conversion efficiency: 96% (maximum)
Output Ripple: <30mV
Switching frequency: 1.5MHz (highest) typically 1MHz
Operating Temperature: -45°C ~ +85°C
Size: 22mm * 17mm (L * W )
Application areas:
DIY mobile power
monitor power supply
power buggies
camera power supply
car power
communications equipment supply,etc.

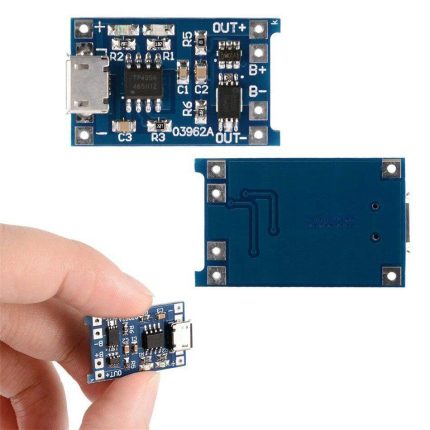

TP4056 1A Li-Ion Battery Charging Board Micro USB with Current Protection BMS
This 3.7V Battery Charger TP4056 module is made for charging rechargeable lithium batteries using the constant-current/constant-voltage (CC/CV) charging method. In addition to safely charging a lithium battery, TP4056 BMS Board also provides the necessary protection required by lithium batteries. The TP4056 is suitable for USB power and adapter power supplies. Due to the internal PMOSFET architecture and anti-reverse charging path, no external isolation diodes are required.
Specification of TP4056 1A Li-Ion Battery Charging Board Micro USB with Current Protection BMS:
Charge module: Linear charging.
Current:1A adjustable.
Charge precision:1.5%.
Input voltage:4.5V-5.5V.
Full charge voltage:4.2V ± 1%
Led indicator: red is charging Green is fully charged.
Input interface:micro USB/mini usb/type-c usb
Work temperature:-10° to +85°.
Inversed polarity: NO.
XL6009 Digital DC-DC Step Up Boost Converter 5 – 32V to 5 – 35V 10W (4A)
L6009 DC-DC Boost Converter 4A Adjustable Step-Up 5-32V to 5V-40V + LED Voltmeter
XL6009 is a 4A switch current high performance boost ( BOOST ) module. This module uses the second-generation high-frequency switching technology XL6009E1 as the core chip, and its performance far exceeds that of the first-generation technology LM2577 . The XL6009 booster module has lower cost and better performance, and the LM2577 module is about to be eliminated.
Characteristics:

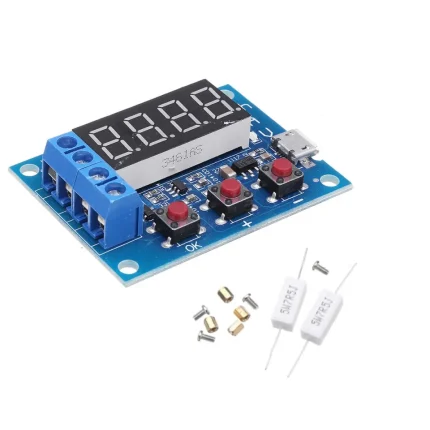

Zb2l3 Hw-586 Hw586 Battery Capacity Tester External Load Discharge Type Module In Pakistan
