Category
Power Supplies – Board Mount
DC DC Converters
Mfr
XP Power
Series
IE (1W)
Packaging
Tube
Part Status
Active
Type
Isolated Module
Number of Outputs
1
Voltage – Input (Min)
2.97V
Voltage – Input (Max)
3.63V
Voltage – Output 1
12V
Voltage – Output 2
–
Voltage – Output 3
–
Current – Output (Max)
84mA
Power (Watts)
1 W
Voltage – Isolation
1 kV
Applications
ITE (Commercial)
Features
–
Operating Temperature
-40°C ~ 85°C
Efficiency
74%
Mounting Type
Through Hole
Package / Case
4-DIP Module
Size / Dimension
0.50″ L x 0.40″ W x 0.27″ H (12.7mm x 10.2mm x 6.9mm)
Control Features
–
Base Product Number
IE0312
-5%
1470-1927-5-N Dsolated Module DC DC Converter 1 Output 15V 400mA 9V - 18V Input
Original price was: ₨ 5575.₨ 5275Current price is: ₨ 5275.
1470-2553-5-Nd Isolated Module DC DC Converter 1 Output 9V 666mA 36V - 75V Inpu
Original price was: ₨ 7350.₨ 6950Current price is: ₨ 6950.
1470-2391-5-ND Isolated Module DC DC Converter 1 Output 12V 84mA 2.97V – 3.63V Input
Original price was: ₨ 3750.₨ 3575Current price is: ₨ 3575.

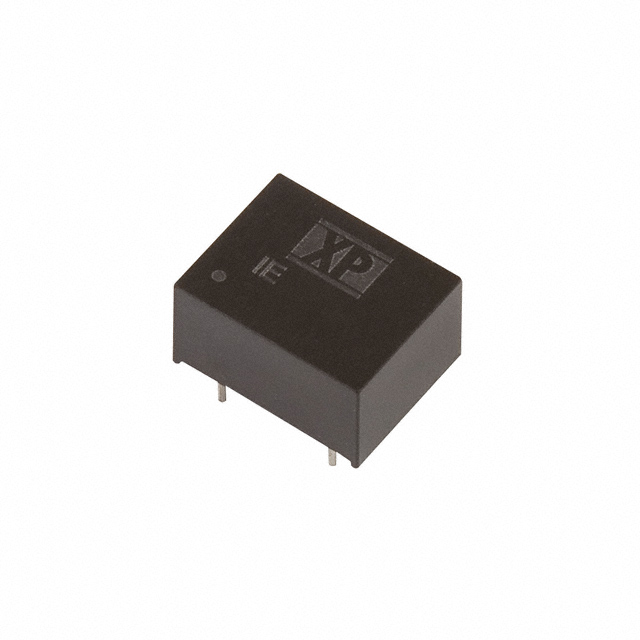

Isolated Module DC DC Converter 1 Output 12V 84mA 2.97V – 3.63V Input
