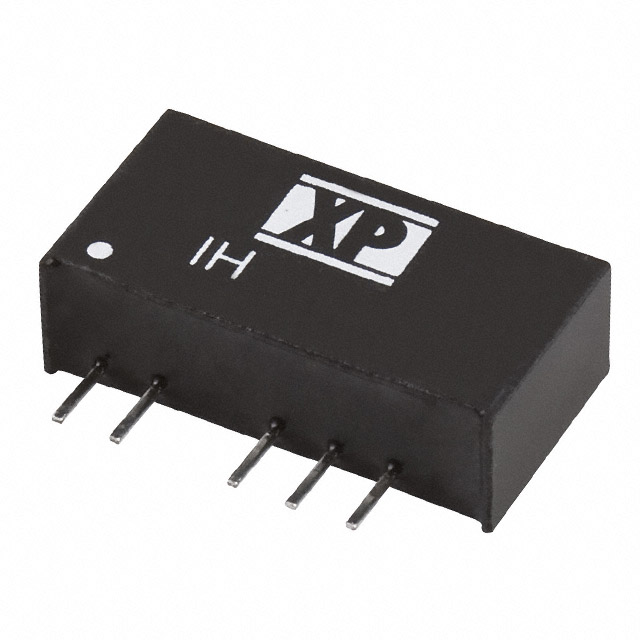

2 Output 9V -9V 111mA, 111mA 43.2V – 52.8V Input
Type
Description
Select All
Category
Power Supplies – Board Mount
DC DC Converters
Mfr
XP Power
Series
IH (2W)
Packaging
Tube
Part Status
Obsolete
Type
Isolated Module
Number of Outputs
2
Voltage – Input (Min)
43.2V
Voltage – Input (Max)
52.8V
Voltage – Output 1
9V
Voltage – Output 2
-9V
Voltage – Output 3
–
Current – Output (Max)
111mA, 111mA
Power (Watts)
2 W
Voltage – Isolation
3 kV
Applications
ITE (Commercial)
Features
–
Operating Temperature
-40°C ~ 85°C
Efficiency
77%
Mounting Type
Through Hole
Package / Case
6-SIP Module, 5 Leads
Size / Dimension
0.76″ L x 0.28″ W x 0.40″ H (19.3mm x 7.2mm x 10.2mm)
Control Features
–
-6%
1470-1920-5-ND 2 Output 3.3V -3.3V 909mA, 909mA 9V - 18V Input
Original price was: ₨ 6500.₨ 5850Current price is: ₨ 5850.
1470-2488-5-ND 12V 84mA 43,2V - 52,8V
Original price was: ₨ 4500.₨ 3850Current price is: ₨ 3850.
1470-2420-5-ND 2 Output 9V -9V 111mA, 111mA 43.2V – 52.8V Input
Original price was: ₨ 4000.₨ 3750Current price is: ₨ 3750.
