Type
Description
Select All
Category

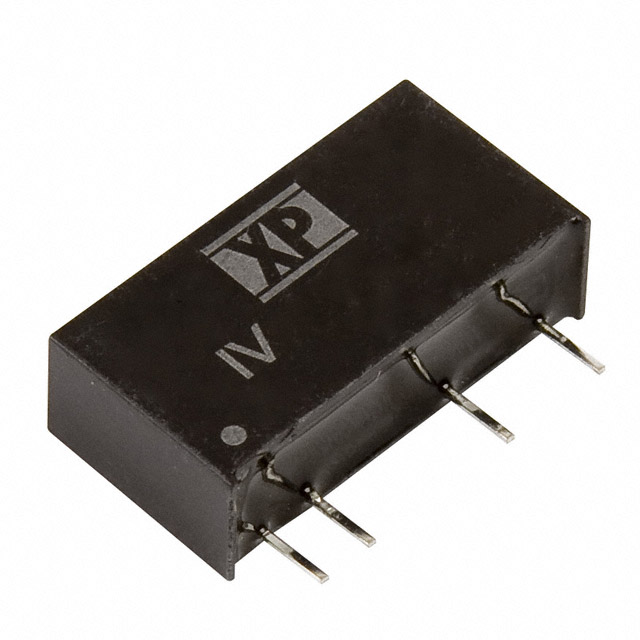

Power Supplies – Board Mount
DC DC Converters
Mfr
XP Power
Series
IV (1W)
Packaging
Tube
Part Status
Active
Type
Isolated Module
Number of Outputs
2
Voltage – Input (Min)
4.5V
Voltage – Input (Max)
5.5V
Voltage – Output 1
24V
Voltage – Output 2
-24V
Voltage – Output 3
–
Current – Output (Max)
21mA, 21mA
Power (Watts)
1 W
Voltage – Isolation
3 kV
Applications
ITE (Commercial)
Features
–
Operating Temperature
-40°C ~ 85°C
Efficiency
72%
Mounting Type
Through Hole
Package / Case
7-SIP Module, 5 Leads
Size / Dimension
0.76″ L x 0.24″ W x 0.39″ H (19.3mm x 6.0mm x 10.0mm)
Control Features
–
Standard Number
62368-1
Base Product Number
IV0524
-9%
1470-2414-5-ND Isolated Module DC DC Converter 2 Output 3.3V -3.3V 200mA, 200mA 43.2V - 52.8V Input
Original price was: ₨ 4750.₨ 4350Current price is: ₨ 4350.
1470-2390-5-ND Isolated Module DC DC Converter 1 Output 9V 111mA 2.97V - 3.63V Input
Original price was: ₨ 2250.₨ 1950Current price is: ₨ 1950.
1470-2471-5-ND Isolated Module DC DC Converter 2 Output 24V -24V 21mA, 21mA 4.5V – 5.5V Input
Original price was: ₨ 2350.₨ 2150Current price is: ₨ 2150.
