Type
Description
Select All
Category

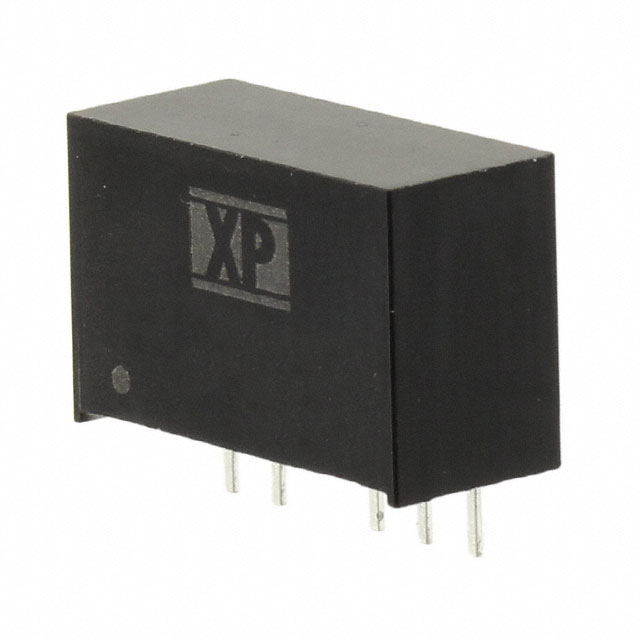

Power Supplies – Board Mount
DC DC Converters
Mfr
XP Power
Series
ITW (1W)
Packaging
Tube
Part Status
Active
Type
Isolated Module
Number of Outputs
2
Voltage – Input (Min)
4.5V
Voltage – Input (Max)
9V
Voltage – Output 1
12V
Voltage – Output 2
-12V
Voltage – Output 3
–
Current – Output (Max)
42mA, 42mA
Power (Watts)
1 W
Voltage – Isolation
1.5 kV
Applications
ITE (Commercial)
Features
SCP
Operating Temperature
-40°C ~ 85°C
Efficiency
77%
Mounting Type
Through Hole
Package / Case
6-SIP Module, 5 Leads
Size / Dimension
0.67″ L x 0.30″ W x 0.43″ H (17.0mm x 7.6mm x 11.0mm)
Control Features
–
Standard Number
62368-1
Base Product Number
ITW0512
-7%
1470-2481-5-ND Isolated Module DC DC Converter 2 Output 3.3V -3.3V 150mA, 150mA 43.2V - 52.8V Input
Original price was: ₨ 4250.₨ 3755Current price is: ₨ 3755.
1470-2418-5-ND Isolated Module DC DC Converter 2 Output 9V -9V 111mA, 111mA 43.2V - 52.8V Input
Original price was: ₨ 5750.₨ 5475Current price is: ₨ 5475.
1470-2638-5-ND Isolated Module DC DC Converter 2 Output 12V -12V 42mA, 42mA 4.5V – 9V Input
Original price was: ₨ 3500.₨ 3250Current price is: ₨ 3250.
