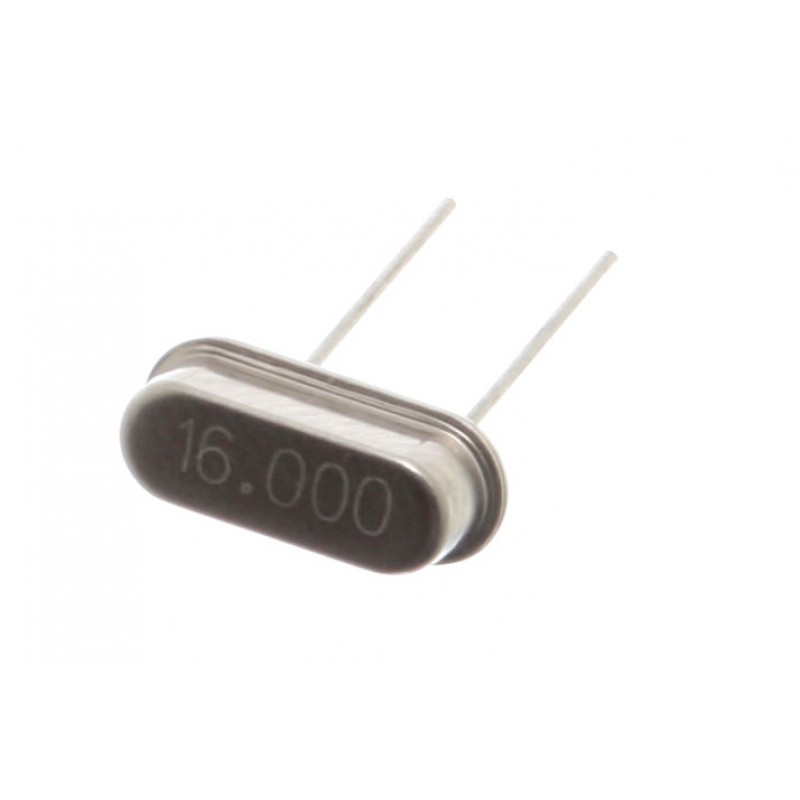

16MHZ CRYSTAL OSCILLATOR Price in Pakistan

Original price was: ₨ 40.Current price is: ₨ 30.

18pF of Load Capacitance
Frequency Tolerance(Ƹf/f) range is ± 30ppm
Frequency Temperature Stability range is ±50ppm
Resonance Resistance 40ohms (max)
Oscillation mode: Fundamental mode
Shunt Capacitance less than 7pF
Drive Level less than 100µW
Operating Temperature Range: -20 to + 70°C
Operable Temperature Range: -25 to + 85°C
Storage Temperature Range: -55 to + 125°C
Insulation Resistance: 500 M ohms

Compare
Add to wishlist
Category: Tag:
Description

Used in frequency synthesizers
Used in special types of receivers
Used as crystal clock in microprocessors
Colpitts Crystal Oscillator Application
Armstrong Crystal Oscillator
Military and Aerospace
Radio and TV transmitters
SPECIFICATION

18pF of Load Capacitance
Frequency Tolerance(Ƹf/f) range is ± 30ppm
Frequency Temperature Stability range is ±50ppm
Resonance Resistance 40ohms (max)
Oscillation mode: Fundamental mode
Shunt Capacitance less than 7pF
Drive Level less than 100µW
Operating Temperature Range: -20 to + 70°C
Operable Temperature Range: -25 to + 85°C
Storage Temperature Range: -55 to + 125°C
Insulation Resistance: 500 M ohms
