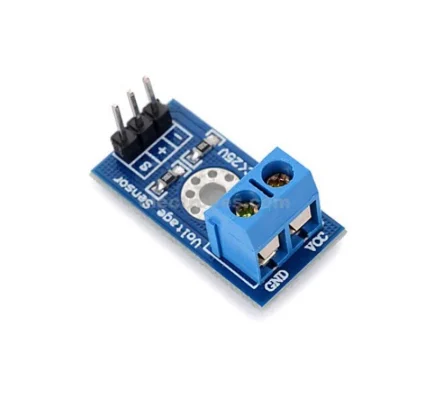

    Dc 0 To 25v Voltage Sensor Module In Pakistan Original price was: ₨ 100.Current price is: ₨ 75.
    Back to products
    Gps Module Neo6m V2 u Blox Original price was: ₨ 1150.Current price is: ₨ 1000.

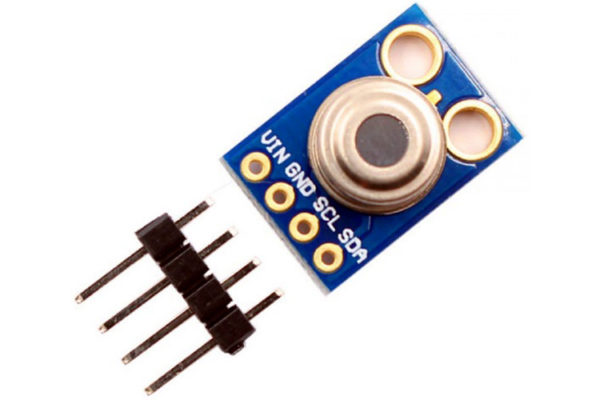

    Digital Infrared Temperature Sensor Module Mlx90614

    Original price was: ₨ 3350.Current price is: ₨ 2200.

    Dimensions: 16.8mm(length)*11.46mm(width)*6.2mm(height), the probe diameter is 8.2mm
    Digital interface type: IIC (slave mode) or PWM
    Temperature measurement range: -70℃～382.2℃
    Temperature measurement error: ±0.5℃ (at room temperature) resolution 0.02℃
    Working voltage: 3.3V～5V
    Operating environment temperature -40～125℃
    With M3 fixing screw holes for easy installation and fixing.
    Instructions for use:
    After power-on reset, MLX90614 is the factory default output mode SMBus, and PWM is not enabled. The SCL pin needs to be kept high at power-up to use PWM. If PWM has been enabled, you need to switch to SMBus and reconfigure the PWM/SDA pin before starting SMBus communication. Need to keep the SCL pin for more than the request time (tREQ) >1, 44ms to keep it low. In this case, the data on the SDA line is ignored. Once PWM is not enabled, it can only be enabled by cutting-off the power supply or exiting sleep mode. If PWM is not enabled through EEPROM, the PWM/SDA pin will be directly used for SMBus communication after POR. In this case, there is no need to send the request status. The way to enter SMBus mode from PWM or thermal relay is the same
    Package Include:
    1PC MLX90614 Infrared Contactless Temperature Sensor Module

    Compare
    Add to wishlist
    Category:
    Description

    Digital Infrared Temperature Sensor for Arduino MLX90614 GY-90614 Module.This is a MELEXIS MLX90614ESF-BAA-000-TU-ND non-contact infrared thermometer for use with Arduino, or any microcontroller that can communicate with it through it’s I2C interface.

    Features
    Small size, low cost
    Mounted on a breakout board with two types of pins
    10k Pull up resistors for the I2C interface with optional solder jumpers
    Easy to integrate
    Factory calibrated in wide temperature range:-40…+125°C for sensor temperature and -70…+380°C for object temperature.
    High accuracy of 0.5°C over wide temperaturerange (0…+50°C for both Ta and To) High (medical) accuracy calibration
    Measurement resolution of 0.02°C
    Single and dual zone versions
    SMBus compatible digital interface
    Customizable PWM output for continuousreading
    Simple adaptation for 8-16V applications
    Sleep mode for reduced power consumption
    Different package options for applications andmeasurements versatility
    Automotive grade
    Applications Examples
    High precision non-contact temperature measurements
    Thermal Comfort sensor for Mobile AirConditioning control system
    Temperature sensing element for residential,commercial and industrial building airconditioning
    Windshield defogging
    Automotive blind angle detection
    Industrial temperature control of moving parts
    Temperature control in printers and copiers
    Home appliances with temperature control
    Healthcare
    Livestock monitoring
    Movement detection
    Multiple zone temperature control – up to 127sensors can be read via common 2 wires
    Thermal relay / alert
    Body temperature measuremen
