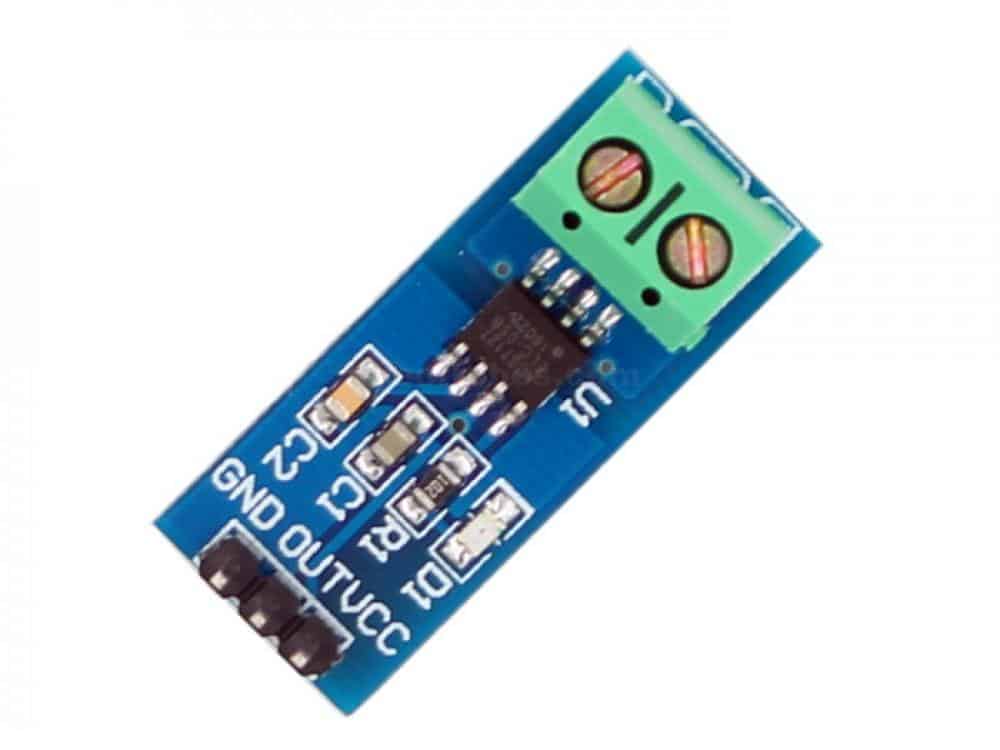

    ACS712 5A 5 Amp Current Sensor Module

    Original price was: ₨ 350.Current price is: ₨ 300.

    The 5A Range Current Sensor Module ACS712 is a versatile and essential component for precise current monitoring in your projects. This high-performance module offers accurate measurements, wide range, and easy integration, making it ideal for various applications.

    Key Features:

    5A Measurement Range: Accurately measures AC or DC currents up to 5A.
    High Accuracy: Provides precise and reliable current readings.
    Easy Integration: Simple to connect to your microcontroller or other devices.
    Versatile Applications: Suitable for over-current protection, battery chargers, and more.
    Compact Design: Small and lightweight for easy installation.
    Specifications:

    Measurement Range: -5A to 5A
    Sensitivity: 66mV/A
    Supply Voltage: 4.5V-5.5V DC
    Dimensions: 31 x 13 x 14 mm
    Weight: 3 gm

    Compare
    Add to wishlist
    Category:
    Description

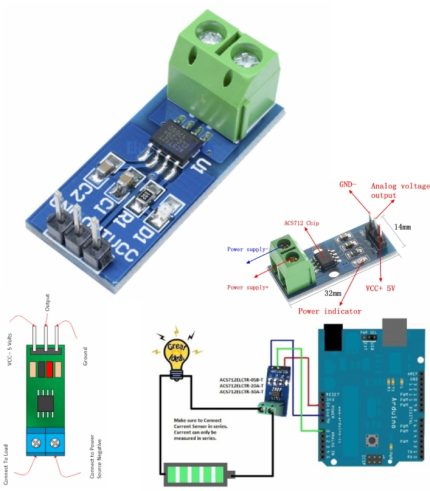

    The ACS712 module has two phoenix terminal connectors (green colour ones) with mounting screws as shown above. These are the terminals through which the wire has to be passed. In our case I am measuring the current drawn by the motor so the wires that is going to the load (motor) is passed through the ACS 712 Module. Make sure the module is connected in series with the load and be extra cautious to avoid shorts.

    On the other side we have three pins. The Vcc is connected to +5V to power the module and the ground is connected to the ground of the MCU (system). Then the analog voltage given out by the ACS712 module is read using any analog pin on the Microcontroller.

    Pin Configuration
    Pin Number Pin Name Description
    1 Vcc Input voltage is +5V for typical applications
    2 Output Outputs Analog voltage proportional to current
    3 Ground Connected to ground of circuit
    T1 Wire In The wire through current has to be measured is connected here

    T2 Wire Out
