Mounting Type
Through Hole
Packaging
Tube
Part Status
Obsolete
Number of Bits
8
Settling Time
4us
Output Type
Voltage – Buffered
Differential Output
No
Data Interface
Parallel
Reference Type
External
Voltage Supply Analog
11.4 V ~ 16.5 V,-5V
Voltage Supply Digital
14.25 V ~ 15.75 V
INL DNL LSB
+-0.5 (Max),+-1 (Max)
Architecture
R-2R
Operating Temperature
-40 deg C ~ 85 deg C
Package or Case
20-DIP (0.300″,7.62mm)
Supplier Device Package
20-PDIP
Base Part Number
AD7226
Minimum Order Quantity
10 Piece

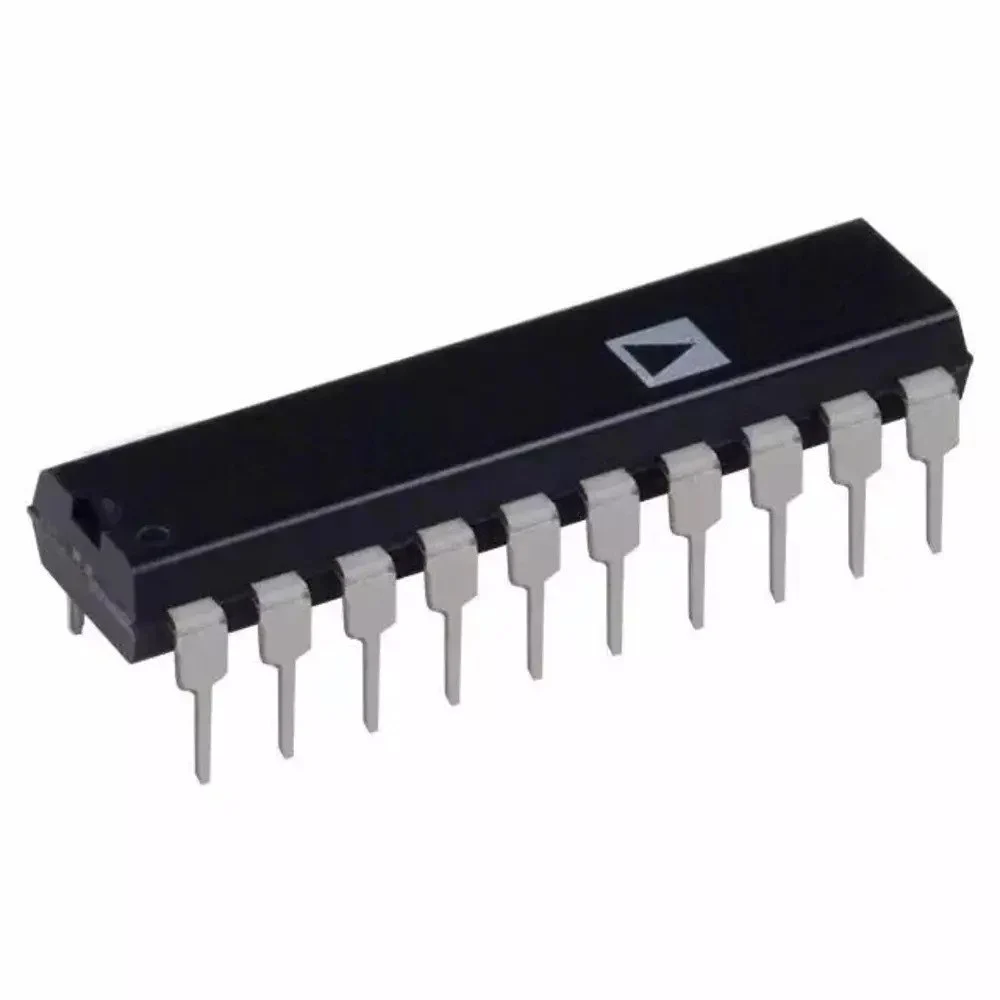

We are offering AD7226KN IC to our clients.
These products have been sourced from certified and trusted market vendors, who use superior quality raw material and efficient manpower to manufacture the entire range.
-16%
AD558JN Integrated Circuits, For Power
Original price was: ₨ 2500.₨ 2375Current price is: ₨ 2375.
AD669 Monolithic 16-Bit DACPORT
Original price was: ₨ 3500.₨ 3350Current price is: ₨ 3350.
AD7226
Original price was: ₨ 2200.₨ 1850Current price is: ₨ 1850.
