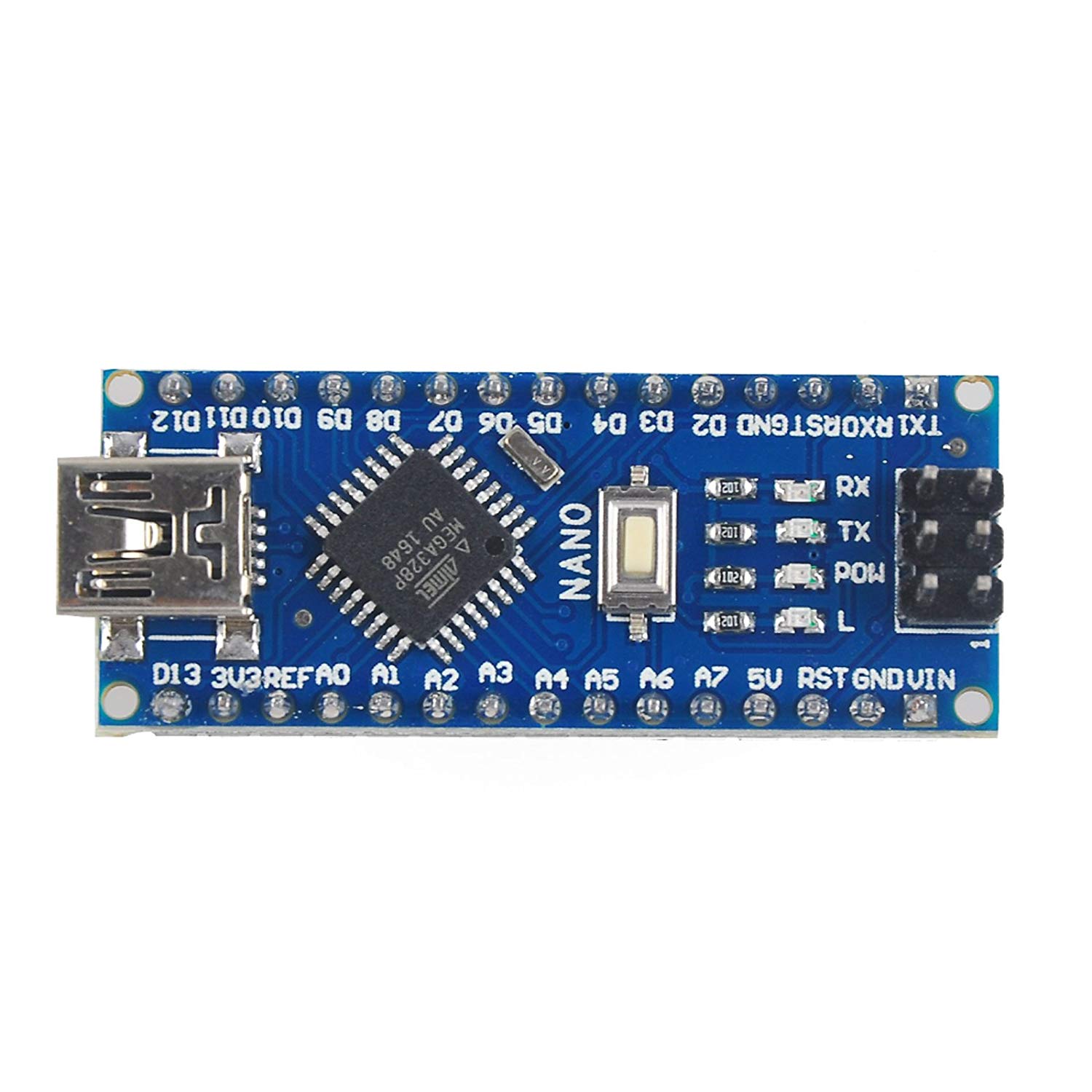

    Arduino Nano Price in Pakistan

    Original price was: ₨ 900.Current price is: ₨ 700.

    Arduino Nano V3 is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3). Arduino Nano board has more or less the same functionality as the Arduino UNO but in a different package. Arduino Nano programming module lacks only a DC power jack and works with a Mini-B USB cable instead of a standard one. Electronicstore.pk

    Weight 250 kg
    Dimensions 2.3 × 1 cm
    Compare
    Add to wishlist
    Category:
    Description

    Specifications of Nano V3 :

    1. Microcontroller: ATmega328 (Arduino nano).
    2. Operating Voltage (logic level): l5 V.
    3. Input Voltage (recommended): 7-12 V.
    4. Input Voltage (limits): 6-20 V.
    5. Digital I/O Pins: 14 (of which 6 provide PWM output).
    6. Analog Input Pins: 8.
    7. DC Current per I/O Pin: 40 mA.
    8. Flash Memory: 16 KB (ATmega168) or 32 KB (ATmega328) of which 2 KB is used by the boot loader.
    9. SRAM: 1 KB (ATmega168) or 2 KB (ATmega328).
    10. EEPROM: 512 bytes (ATmega168) or 1 KB (ATmega328).
    11. Clock Speed: 16 MHz.
    12. Dimensions: 0.73″ x 1.70″.
    13. Length: 45 mm.
    14. Width: 18 mm.
    15. Weight: 5 g.

    Features of Arduino Nano V3;

    • Automatic reset during program download
    • Power OK blue LED
    • Green (TX), red (RX), and orange (L) LED
    • Auto-sensing/switching power input
    • Small mini-B USB for programming and serial monitor
    • ICSP header for direct program download
    • Standard 0.1” spacing DIP (breadboard friendly)
    • Manual reset switch

    Related Documents:

    1. IC CH340G Datasheet here
    2. IC Atmel ATmega328 Datasheet here
    Package Includes:
    • 1 x  Arduino Nano V3 Arduino Nano
    Reviews (0)

    Reviews

    There are no reviews yet.

    Be the first to review “Arduino Nano Price in Pakistan”

    Your email address will not be published. Required fields are marked *

    Shipping & Delivery
    wd-ship-1
    wd-ship-2

    MAECENAS IACULIS

    Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

    ADIPISCING CONVALLIS BULUM

    • Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
    • Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
    • Diam parturient dictumst parturient scelerisque nibh lectus.

    Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

    Related products

    -8%
    Compare

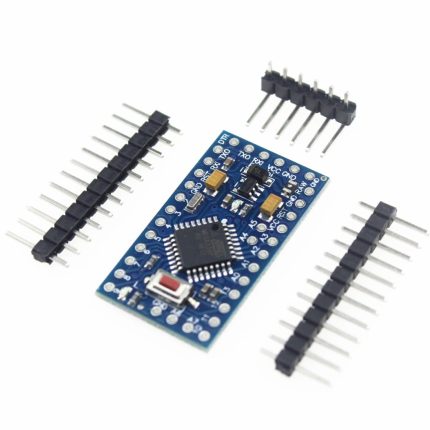

    Arduino Pro Mini 328 Mini ATMEGA328 3.3V/16MHz in Pakistan

    Original price was: ₨ 1250.Current price is: ₨ 1150.
    he Arduino Pro Mini 3.3v/8mhz is a small, low-cost Arduino board that runs at 3.3V & frequency of 8MHz. This 3.3v/8mhz Mini Board designed for semi-permanent installation in objects or exhibitions. The board comes without pre-mounted headers, allowing the use of various types of connectors or direct soldering of wires.
    Add to wishlist
    Add to cart
    Quick view
    -30%
    Compare

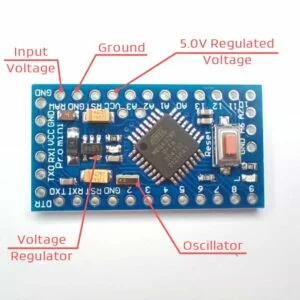

    Arduino Pro Mini 5v 16mhz Atmega328p Price in Pakistan

    Original price was: ₨ 1000.Current price is: ₨ 700.
    he Arduino Pro Mini 5V/16MHz ATmega328P is a small, low-cost, and versatile microcontroller board based on the ATmega328P. Mini 5v/16mhz has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, an on-board resonator, a reset button, and holes for mounting pin headers.
    Add to wishlist
    Add to cart
    Quick view
    -17%
    Compare

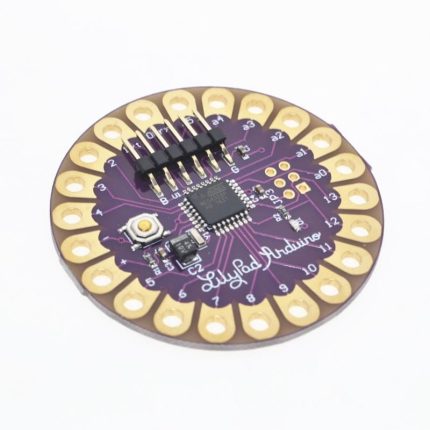

    Atmega328 16MHz LilyPad For Arduino in Pakistan

    ,
    Original price was: ₨ 1500.Current price is: ₨ 1250.
    It has ATmega168 or ATmega328V microcontroller, Its operating voltages are 2.7 to 5.5 volts. Its input voltage is 2.7 to 5.5V. It’s digital I/O pins are 14. Its PWM channels are 6. It has 6 analog input channels. 40mA is DC current per I/O Pin.
    Add to wishlist
    Add to cart
    Quick view
    -14%
    Compare

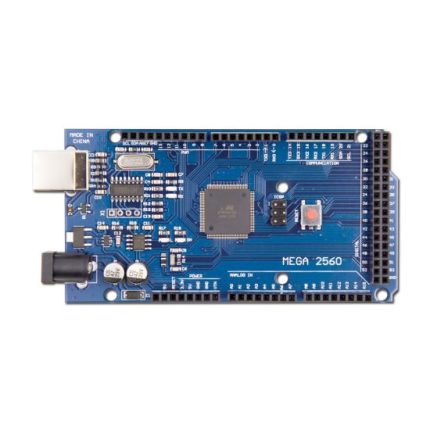

    Ch340 Arduino Mega 2560 With Cable In Pakistan

    ,
    Original price was: ₨ 4000.Current price is: ₨ 3450.
    The Mega 2560 is a micro-controller board base on the CH340. It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything need to support the micro-controller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get start. The Mega is compatible with most shields design for the Duemilanove or Diecimila. The Mega 2560 is an update to the Mega, which it replaces. The Mega2560 differs from all preceding boards in that it does not use the FTDI USB-to-serial driver chip. Instead, it features the CH340 programmed as a USB-to-serial converter. Revision 2 of the Mega2560 board has a resistor pulling the 8U2 HWB line to ground, making it easier to put into DFU mode.
    Add to wishlist
    Add to cart
    Quick view
    -8%
    Compare

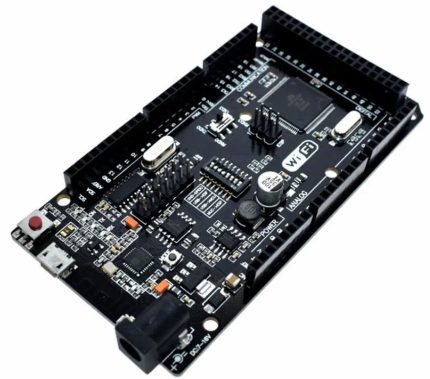

    Mega2560 + WiFi R3 ATmega2560+ESP8266 | 32Mb Memory | USB-TTL CH340G | Compatible for Arduino Mega NodeMCU WeMos Development board

    Original price was: ₨ 6500.Current price is: ₨ 6000.
    It is a customized version of the classic ARDUINO MEGA R3 board. Full integration of Atmel ATmega2560 microcontroller and ESP8266 Wi-Fi IC, with 32 Mb (megabits) of flash memory, and CH340G USB-TTL converter on a single board! All components can be set up to work together or independent
    Add to wishlist
    Add to cart
    Quick view
    -13%
    Compare

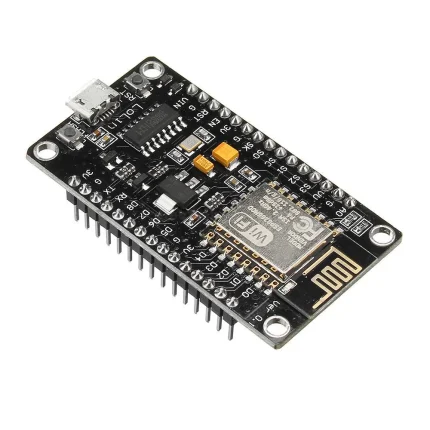

    NodeMCU Lolin V3 ESP8266 WiFi Microcontroller Module

    ,
    Original price was: ₨ 750.Current price is: ₨ 650.
    Arduino-Like Hardware IO Code like Arduino, but interactively in Lua script Event-driven API for network applications, which facilitates developers writing code Integrates GPIO, PWM, IIC, 1-Wire and ADC all in one board 10 GPIO, every GPIO can be PWM, I2C, 1-wire 4M Flash Memory Built-in WiFi Antenna
    Add to wishlist
    Add to cart
    Quick view
    -11%
    Compare

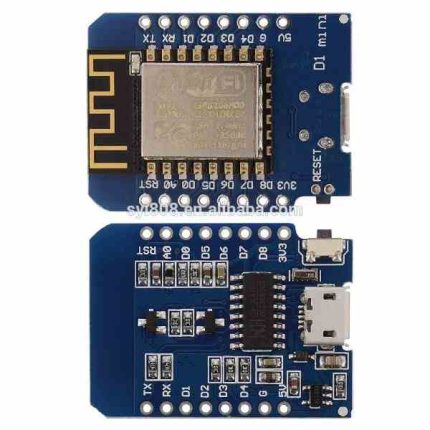

    Wemos D1 Mini Wifi Development Board Esp8266 In Pakistan

    Original price was: ₨ 700.Current price is: ₨ 625.
    This IOT Wemos D1 Mini WIFI Internet Of Things Development Board based on ESP8266 esp12e, Wemos d1 Mini is a WIFI board based on ESP-8266EX. 11 digital input/output pins, all pins have interrupt/PWM/I2C/one-wire supported(except D0) 1 analog input(3.3V max input) and a Micro USB connection. The Wemos D1 Mini is a great board to develop WiFi-based IoT Projects. It uses the popular ESP8266 Module for its IoT operations.
    Add to wishlist
    Add to cart
    Quick view
    -8%
    Compare

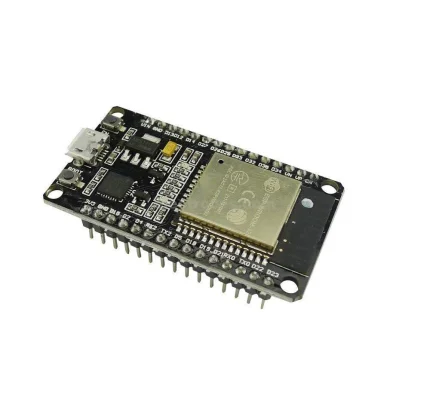

    WROOM ESP32 Wifi Microcontroller Development

    ,
