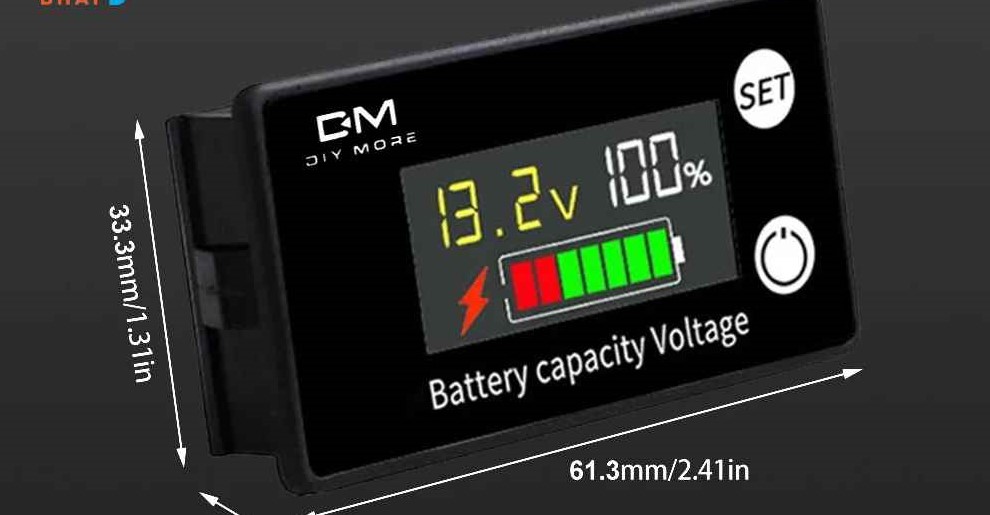

Battery Capacity Indicator DC 8V-100V Voltmeter Voltage Gauge 12V 24V 48V 72V

Long press the upper right corner button on the home screen for 2 seconds to enter the mode Settings page, and long press the upper right corner button for another 2 seconds to exit the Settings page and return to the home screen

Mode 1 – Lead acid P setting;

Mode 2 – ternary lithium L setting;

Mode 3 – Lithium iron F setting;

Mode 4 — Custom high and low voltage Settings: Custom low voltage and saturation voltage,

display 00.0 000, the left digit is the low voltage parameter, right

The number is the saturation voltage parameter;

Mode 5– backlight setting: Display 5-B, short press the button in the lower right corner to

switch ON/OFF, ON is to automatically turn OFF the backlight after 10S delay, OFF is

The backlight is always on;

Mode 6- low voltage alarm Settings: display 00.0V Lo, the left is the alarm voltage parameter

(voltage below this parameter alarm);

Mode 7– alarm sound setting: Display 7-A, short press the button in the lower right corner to

switch ON/OFF, ON is to open the alarm sound function, and OFF is to shut down the alarm sound function (this function needs to be selected when purchased)
