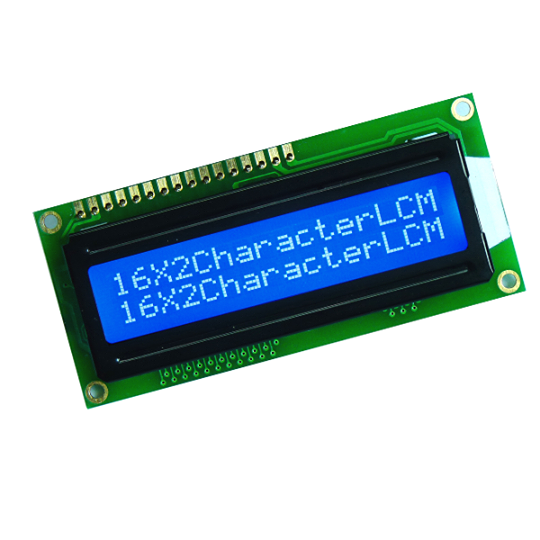

Blue 1602 Lcd 16×2 Character Lcd Arduino Display For Arduino

1602 16×2 Blue Character LCD Display For Arduino is a basic 16 character by 2 lines Alphanumeric display. This LCD 16×2 Character LCD Display has White text on a blue background. Utilizes the extremely common HD44780 parallel interface chipset. Interface code is freely available. You will need Minimum 6 general I/O pins to interface to this LCD screen. Includes LED backlight. Works in 4bit and 8 bit Mode.

Features of Blue 1602 LCD 16×2 Character LCD Display For Arduino:
16 Characters x 2 Lines
Blue Backlight
5×7 Dot Matrix Character + Cursor
HD44780 Equivalent LCD Controller/driver Built-In
4-bit or 8-bit MPU Interface
Standard Type
Works with almost any Microcontroller
Specifications of Blue 1602 16×2 Blue Character LCD Display For Arduino:
Construction COB (Chip-on-Board)
Display Format 16×2 Characters
Display Type STN, Transflective, Positive
Controller SPLC780D1 or equivalent controller
Interface 8-bit Parallel Interface
LCD Color Black Text on Green Backlight
Backlight LED
Viewing Direction 6 O’Clock
Driving Scheme 1/16 Duty Cycle, 1/5 Bias
Power Supply Voltage 5.0 V
VLCD Adjustable For Best Contrast 5.0 V (Vop.)
Operating Temperature -20⁰C ~ 70⁰C
Storage Temperature -30⁰C ~ 80⁰C
