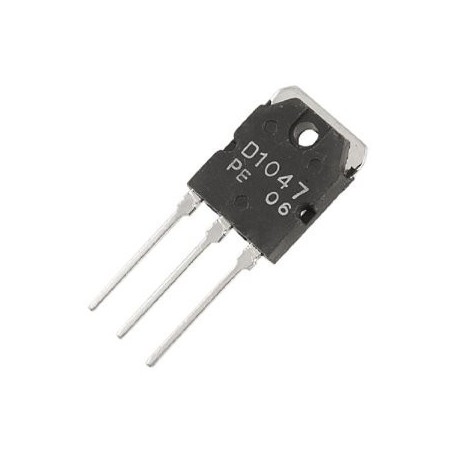

D1047 NPN Transistor 140V/12A

The D1047 is a versatile NPN transistor that can use in a variety of circuits. D1047 High power NPN epitaxial planar bipolar transistor is a reliable and efficient transistor that is well-suited for high-power applications.

The D1047 is an NPN bipolar junction transistor (BJT) that is commonly use in high-power audio amplifiers, power supply circuits, and low-frequency circuits. Transistor D1047 has a collector-emitter voltage rating of 140 V, a collector-base voltage rating of 160 V, an emitter-base voltage rating of 6 V, a collector current rating of 12 A, and a collector dissipation rating of 100 W. The DC current gain (hfe) of the D1047 is typically between 60 and 120.

This D1047 transistor has a collector dissipation rating of 100 watts. This means that the transistor can dissipate 100 watts of heat before it overheats and fails. The collector dissipation rating is the maximum amount of power that the transistor can dissipate without damage

It is important to note that the collector dissipation rating is only a maximum rating. The actual amount of heat that the transistor dissipates will depend on the circuit that it is used in. If the transistor is use in a circuit that generates more heat than the collector dissipation rating, the transistor will overheat and fail.

To ensure that the D1047 transistor does not overheat, it is important to use a heat sink. Transistor 2SD1047 is a reliable and efficient transistor that is well-suited for high-power applications.

Features : –
The D1047 Transistor can use in a variety of circuits. Transistor D1047 is a high power dissipation rating, high current rating, wide operating voltage range, high current gain, and durable construction make it a reliable and efficient choice for many applications. but it is most commonly use in audio amplifiers. In an audio amplifier, the D1047 is use to amplify the signal from an audio source, such as a microphone or a guitar pickup. The amplified signal is then sent to a speaker, where it is converted into sound. The D1047 NPN transistor has a number of benefits, including:

High power dissipation rating
High current rating
Wide operating voltage range
High current gain
Durable construction
D1047 NPN Transistor Specifications : –
The D1047 Transistor can also use in power supply circuits. In a power supply circuit, the D1047 is use to switch on and off the power supply. The D1047 transistor is turn on by a small current, and it turns off when the current exceeds a certain threshold. here are the specifications of the D1047 transistor:

Type: NPN bipolar junction transistor (BJT)
Collector-emitter voltage rating: 140 V
Collector-base voltage rating: 160 V
Emitter-base voltage rating: 6 V
Collector current rating: 12 A
Collector dissipation rating: 100 W
DC current gain (hfe): 60 to 120
