802.11 b/g/n
Wi-Fi Direct (P2P), soft-AP
Integrated TCP/IP Protocol Stack
Integrated TR switch, balun, LNA, power amplifier, and matching network
Integrated PLLs, regulators, DCXO, and power management units
+19.5dBm output power in 802.11b mode
Power down leakage current of <10uA
1 Mb flash memory
Integrated low-power 32 bit CPU could be used as an application processor
SDIO 1.1/ 2.0, SPI, UART
STBC, 1×1 MIMO, 2×1 MIMO
A-MPDU and A-MSDU aggregation and 0.4ms guard interval
Wake up and transmit packets in <2ms
Standby power consumption of <1.0mW(DTIM3)
-13%
NodeMCU Lolin V3 ESP8266 WiFi Microcontroller Module
Original price was: ₨ 750.₨ 650Current price is: ₨ 650.
Wemos D1 Mini Wifi Development Board Esp8266 In Pakistan
Original price was: ₨ 700.₨ 625Current price is: ₨ 625.

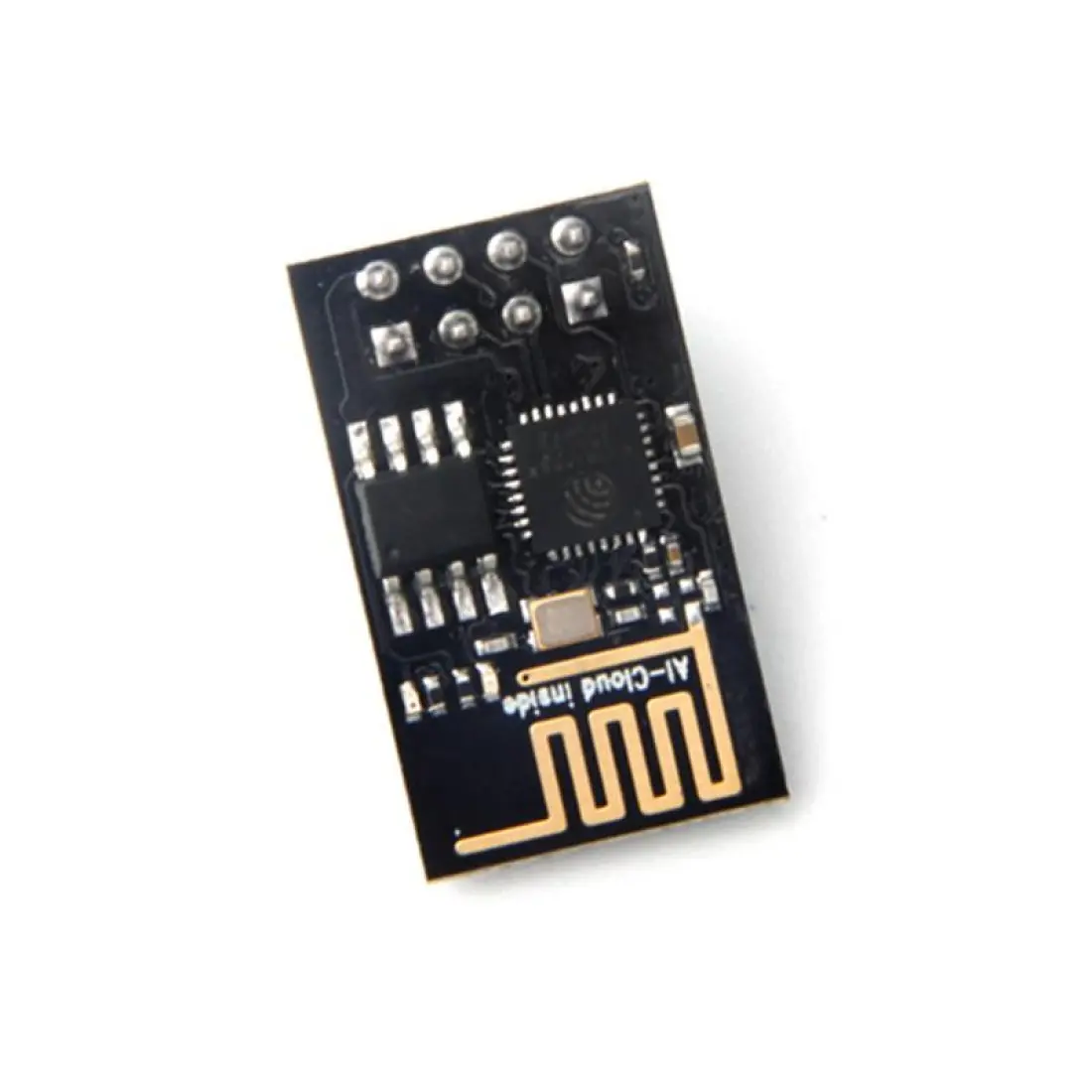

Esp01 Esp 01 Esp8266 Wifi Module
Original price was: ₨ 400.₨ 350Current price is: ₨ 350.
The ESP 01 or ESP8266 WiFi Module is a self-contained SOC. ESP8266 serial module has integrated TCP/IP protocol stack that can give any microcontroller access to your WiFi network. The esp8266 wifi module Arduino is capable of either hosting an application or offloading all Wi-Fi networking functions from another application processor. Each ESP8266 module comes pre-programmed with an AT command set firmware, meaning, you can simply hook this up to your Arduino device and get about as much WiFi-ability as a WiFi Shield offers (and that’s just out of the box)! The esp 01 connect to wifi module is an extremely cost-effective board with a huge, and ever-growing, community.
| Weight | 250 kg |
|---|
Description
Reviews (0)
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
Arduino Compatible Usb Host Shield
Specifications & Features :
Model: 6937
Color: Blue
Material: FR4
Ports: USB
Dimensions: 53mm x 50 (LxW) mm
Works with standard (dual 5/3.3V) and 3.3V-only (for example, Arduino Pro) boards.
Operates over the extended -40°C to +85°C temperature range
Complies with USB Specification Revision 2.0 (Full-Speed 12Mbps Peripheral, Full-/Low-Speed 12Mbps/1.5Mbps Host)
Supports HID devices, such as keyboards, mice, joysticks, etc.
Compatible with Mass storage devices, such as USB sticks, memory card readers, external hard drives (FAT32 Type File System – Arduino Mega only).
Package Includes:
1 x Arduino Compatible USB Host Shield
Arduino Nano Price in Pakistan
Arduino Nano V3 is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3). Arduino Nano board has more or less the same functionality as the Arduino UNO but in a different package. Arduino Nano programming module lacks only a DC power jack and works with a Mini-B USB cable instead of a standard one. Electronicstore.pk
Ch340 Arduino Mega 2560 With Cable In Pakistan
The Mega 2560 is a micro-controller board base on the CH340. It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything need to support the micro-controller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get start. The Mega is compatible with most shields design for the Duemilanove or Diecimila.
The Mega 2560 is an update to the Mega, which it replaces. The Mega2560 differs from all preceding boards in that it does not use the FTDI USB-to-serial driver chip. Instead, it features the CH340 programmed as a USB-to-serial converter.
Revision 2 of the Mega2560 board has a resistor pulling the 8U2 HWB line to ground, making it easier to put into DFU mode.
Wemos D1 Mini Pro With External Antenna In Pakistan
Features Of WEMOS D1 Mini Pro:
11 digital input/output pins
Interrupt/PWM/I2C/one-wire
1 analog input(3.2V max input)
4M byte Flash
External antenna connector
Built-in ceramic antenna
New CP2104 USB-TO-UART IC
Same size as D1 mini, but more light
Specification
Microcontroller ESP-8266EX
Operating Voltage 3.3V
Digital I/O Pins 11
Analog Input Pins 1(Max input: 3.2V)
Clock Speed 80MHz/160MHz
Flash 4M bytes
Length 34.2mm
Width 25.6mm
Weight 2.5g
NOTE: All of the IO pins have interrupt/PWM/I2C/one-wire support except D0, All of the IO pins run at 3.3V.
Package
1 x D1 Mini Pro V1.1.0
1 x Set of header pins
Downloads:
Click me For Drivers OF WeMos D1 Mini Pro
Package includes:
1x WEMOS D1 Mini Pro module
2x 20-pin headers (customer can cut small piece as needed)
1x Antenna
1x ipx Connector
