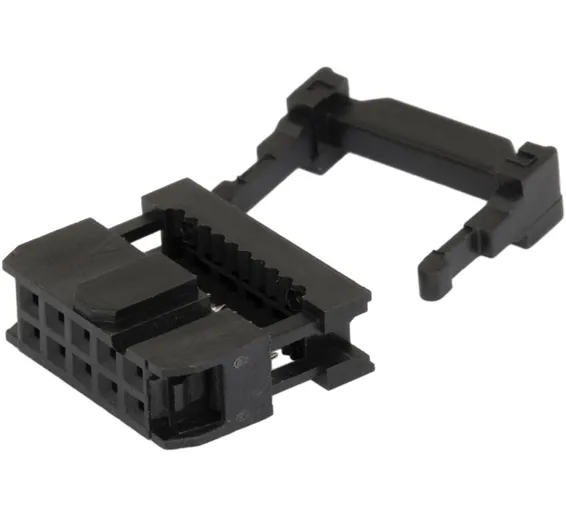

IDC 10 Pin Female Connector

IDC 10 Pin Female Connector Specifications:

Connector Type: IDC (Insulation Displacement Connector) 10-pin female box connector.
Pin Count: 10 pins for accommodating multi-conductor ribbon cables.
Termination Method: Insulation displacement technology for tool-less and solderless cable termination.
Cable Compatibility: Designed for use with flat ribbon cables, typically with a pitch of 0.1 inches (2.54 mm).
Material: High-quality materials, such as durable plastics and metals, for robustness and long-lasting performance.
Contact Material: Phosphor Bronze or other suitable materials for excellent conductivity and corrosion resistance.
Contact Plating: Gold or Tin plating for reliable and low-resistance electrical connections.
Polarity Keying: Incorporates a polarizing feature to ensure correct alignment and prevent reverse insertion of the ribbon cable.
Mounting Style: Typically designed for through-hole mounting on PCBs, providing stability and mechanical strength.
Latch Mechanism: Secure latching mechanism to ensure a positive and stable connection.
Operating Temperature Range: Suitable for a wide temperature range to accommodate diverse application environments.
RoHS Compliance: Compliant with RoHS (Restriction of Hazardous Substances) directives for environmental safety.
Durability: Designed for a high number of insertion and extraction cycles, ensuring long-term reliability and performance.
Application: Ideal for use in applications such as internal connections on PCBs, interconnecting modules, and other scenarios where flat ribbon cables are employed.
Compatibility: Compatible with standard 10-pin IDC connectors, providing versatility in system integration and design.
