The INA110 is a versatile monolithic FET-input instrumentation amplifier. Its current-feedback circuit topology and laser trimmed input stage provide excellent dynamic performance and accuracy. The INA110 settles in 4µs to 0.01%, making it ideal for high speed or multiplexed-input data acquisition systems.
Internal gain-set resistors are provided for gains of 1,10, 100, 200, and 500V/V. Inputs are protected for differential and common-mode voltages up to ±Vcc.Its very high input impedance and low input bias current make the NA110 ideal for applications requiring input filters or input protection circuitry.

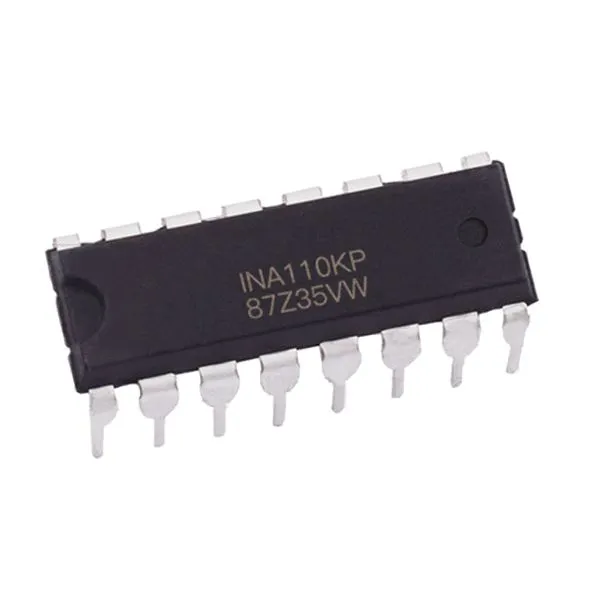

The NA110 is available in 16-pin plastic and ceramic DIPs, and in the SOL-16 surface-mount package.Military, industrial and commercial temperature range grades are available.
Features
LOW BIAS CURRENT: 50pA max
FAST SETTLING: 4μs to 0.01%
HIGH CMR: 106dB min; 90dB at 10kHz
INTERNAL GAINS: 1, 10, 100, 200, 500
VERY LOW GAIN DRIFT: 10 to 50ppm/°C
LOW OFFSET DRIFT: 2μV/°C
LOW COST
PINOUT SIMILAR TO AD524 AND AD624
