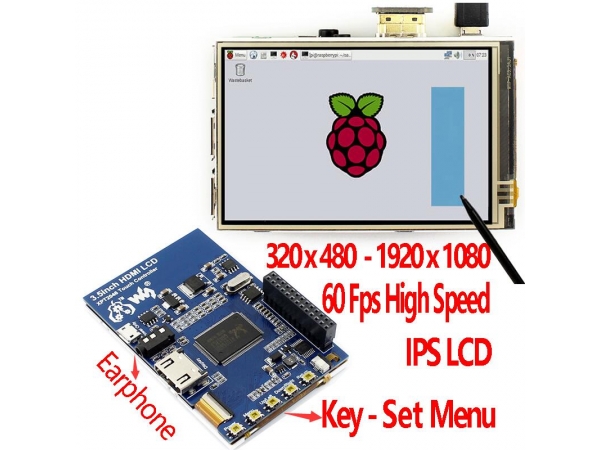

480×320 hardware resolution, software configurable up to 1920×1080
Resistive touch control
IPS technology, high quality and perfect displaying from very wide viewing angle
Compatible and Direct-connect with any revision of Raspberry Pi (except the Pi 1 model B or Pi Zero, which requires an HDMI cable)
Drivers provided (works with your own Raspbian/Ubuntu directly)
Also works as a computer monitor, in this case, touch panel is unavailable and HDMI cable is required
HDMI interface for displaying, no I/Os required (however, the touch panel still needs I/Os)
Multi-languages OSD menu, for power management, brightness adjustment, contrast adjustment, etc.
Supports 100-level backlight adjustment
Supports HDMI audio output
Interface
PIN NO. SYMBOL DESCRIPTION
1, 17 3.3V Power positive (3.3V power input)
2, 4 5V Power positive (5V power input)
3, 5, 7, 8, 10, 11, 12, 13, 15, 16, 18, 24 NC NC
6, 9, 14, 20, 25 GND Ground
19 TP_SI SPI data input of Touch Panel
21 TP_SO SPI data output of Touch Panel
22 TP_IRQ Touch Panel interrupt, low level while the Touch Panel detects touching
23 TP_SCK SPI clock of Touch Panel
-11%
0%

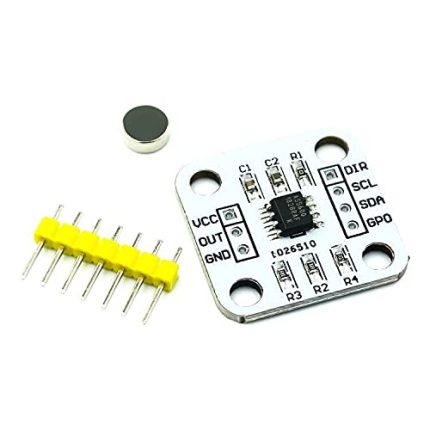

AS5600 Magnetic Encoder Magnetic Induction Angle Measurement Sensor Module 12-Bit High Precision
