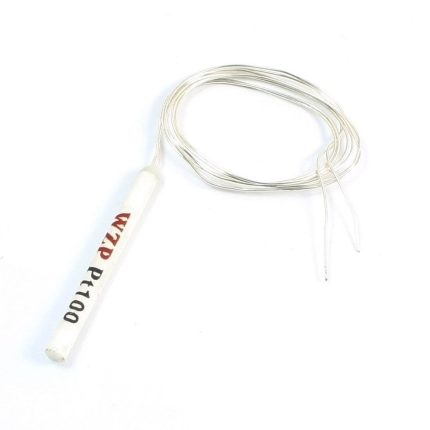

PT100 Ceramic RTD Temperature Sensor Original price was: ₨ 1450.Current price is: ₨ 1200.
Back to products
Arduino UNO WiFi R3 ATmega328P + ESP8266 8Mb USB-TTL CH340G Development Board Original price was: ₨ 2200.Current price is: ₨ 1900.

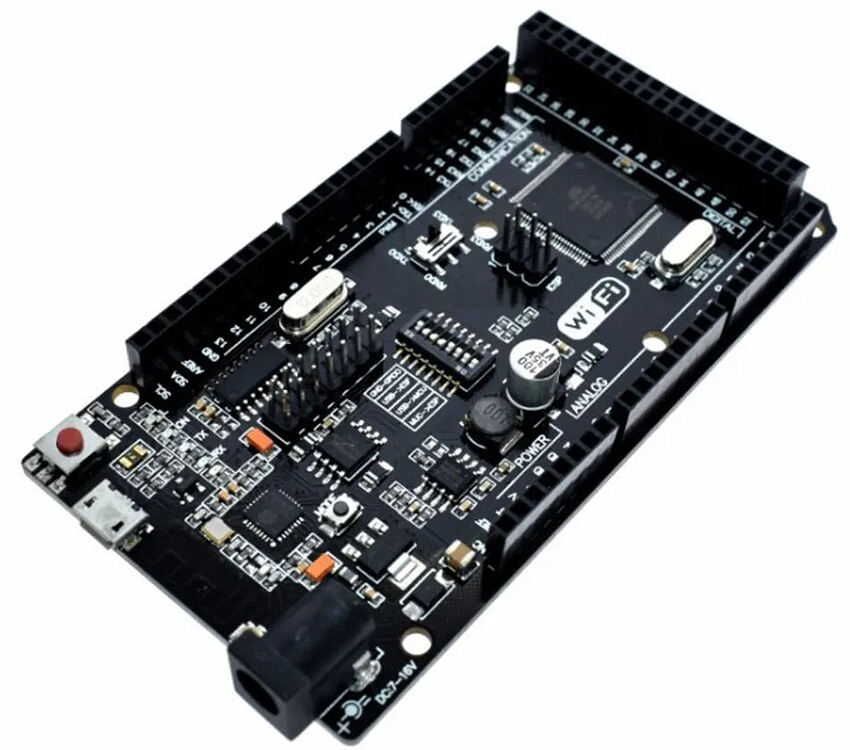

Mega2560 + WiFi R3 ATmega2560+ESP8266 | 32Mb Memory | USB-TTL CH340G | Compatible for Arduino Mega NodeMCU WeMos Development board

Original price was: ₨ 6500.Current price is: ₨ 6000.

It is a customized version of the classic ARDUINO MEGA R3 board. Full integration of Atmel ATmega2560 microcontroller and ESP8266 Wi-Fi IC, with 32 Mb (megabits) of flash memory, and CH340G USB-TTL converter on a single board! All components can be set up to work together or independent

Weight 300 kg
Compare
Add to wishlist
Category:
Description

t is a customized version of the classic ARDUINO MEGA R3 board. Full integration of Atmel ATmega2560 microcontroller and ESP8266 Wi-Fi IC, with 32 Mb (megabits) of flash memory, and CH340G USB-TTL converter on a single board! All components can be set up to work together or independently.

Specifications
Microcontroller:ATmega2560
IC Wi-Fi : ESP8266
USB-TTL converter: CH340G
Power Out: 5V-800mA
Power Input USB: 5V (500mA max.)
Power Input VIN/DC Jack: 9-24V
Power Consumption: 5V 800mA
Logic Level: 5V
Wi-Fi 802.11 b/g/n 2.4 GHz
USB: Micro USB
Clock Frequency: 16MHz
Operating Supply Voltage: 5V
Digital I/O: 54
Analog I/O: 16
Memory Size: 256kb
Data RAM Type/Size: 8Kb
Data ROM Type/Size: 4Kb
Interface Type : SerialOTA
Operating temperature :−40С°/+125С°
Dimensions:53.361×101.86mm
Buil-inexternal antenna
