    Przetwornica step-up 4V-36V 10W 2A XL6007 Original price was: ₨ 350.Current price is: ₨ 300.
    Back to products
    2in1 DC 0-100V Voltmeter Ammeter With DC 100A 75mV Ampere Shunt Dual 0.28″ Red Blue Voltage Detector Current Indicator Original price was: ₨ 1700.Current price is: ₨ 1500.

    Mini Mp1584en Dc-dc Buck Adjustable Step Down Module 4.5v-28v Input 0.8v-20v Output

    Original price was: ₨ 180.Current price is: ₨ 150.

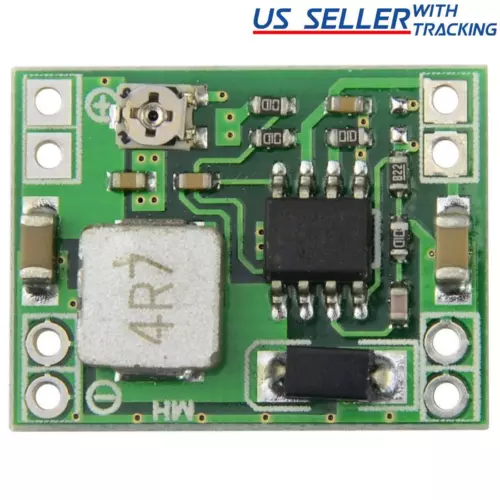

    Mini MP1584EN DC-DC BUCK Adjustable Step Down Module 4.5V-28V Input 0.8V-20V Output
    The MP1584 is a high frequency step-down switching regulator with an integrated internal high-side high voltage power MOSFET

    Specifications:
    Model:MP1584
    Name: DC-DC step-down module
    Input Voltage: 4.5V ~ 28V
    Output voltage: 0.8V ~ 20V
    Output Current: 3A (Max)
    Conversion efficiency: 96% (maximum)
    Output Ripple: <30mV Switching frequency: 1.5MHz (highest) typically 1MHz Operating Temperature: -45°C ~ +85°C Size: 22mm * 17mm (L * W ) Application areas: DIY mobile power monitor power supply power buggies camera power supply car power communications equipment supply,etc.

    Compare
    Add to wishlist
    Category:
    Description

    Mini MP1584EN DC-DC BUCK Adjustable Step Down Module 4.5V-28V Input 0.8V-20V Output
    The MP1584 is a high frequency step-down switching regulator with an integrated internal high-side high voltage power MOSFET

    Specifications:
    Model:MP1584
    Name: DC-DC step-down module
    Input Voltage: 4.5V ~ 28V
    Output voltage: 0.8V ~ 20V
    Output Current: 3A (Max)
    Conversion efficiency: 96% (maximum)
    Output Ripple: <30mV Switching frequency: 1.5MHz (highest) typically 1MHz Operating Temperature: -45°C ~ +85°C Size: 22mm * 17mm (L * W ) Application areas: DIY mobile power monitor power supply power buggies camera power supply car power communications equipment supply,etc.

    Reviews (0)

    Reviews

    There are no reviews yet.

    Be the first to review “Mini Mp1584en Dc-dc Buck Adjustable Step Down Module 4.5v-28v Input 0.8v-20v Output”

    Your email address will not be published. Required fields are marked *

    Shipping & Delivery
    wd-ship-1
    wd-ship-2

    MAECENAS IACULIS

    Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

    ADIPISCING CONVALLIS BULUM

    • Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
    • Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
    • Diam parturient dictumst parturient scelerisque nibh lectus.

    Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

    Related products

    -12%
    Compare

    2in1 DC 0-100V Voltmeter Ammeter With DC 100A 75mV Ampere Shunt Dual 0.28″ Red Blue Voltage Detector Current Indicator

    ,
    Original price was: ₨ 1700.Current price is: ₨ 1500.
    Power Supply (Measure Voltage): DC 4.5-30V Measure Voltage Range:0-100v Measure voltage < 10V,Min Resolution: 0.01V Measure voltage >10V, Min resolution: 0.1V Measure Current: 100A forward current ( more than 10A need shunt) Current Resolution: 0.01A Operating Current: <20mA Display: 0.28 "LED monochrome（red and red) Dimensions: 48 x 29 x 21 mm Cutting Size: 45 x 26 mm Measurement rate: ≥ 500mS / times Accuracy: 1% (± 1 digit ) Operating Temperature: -10°c ~ +65°c Operating Humidity: 10 ~ 80% (non-condensing) Working pressure: 80 ~ 106kP
    Add to wishlist
    Add to cart
    Quick view
    -11%
    Compare

    Cc-cv Xl4016 9a Dc To Dc Adjustable Buck Converter

    Original price was: ₨ 950.Current price is: ₨ 850.
    he DC-DC Step-Down 9A XL4016 voltage converter has the function of delivering a constant output voltage lower than the input voltage against variations in the input or load voltage. It supports output currents of up to 9A, input voltage between 8V to 40V and output voltage between 1.25V to 36V. The output voltage is selected by a multiturn potentiometer
    Add to wishlist
    Add to cart
    Quick view
    -9%
    Compare

    LM2596 Dc To Dc Buck Converter Step Down Module Power Supply

    Original price was: ₨ 160.Current price is: ₨ 145.
    LM2596 DC-DC Buck Converter Step Down Module Power Supply is a step-down(buck) switching regulator. LM2596 Buck is capable of driving a 3-A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, and an adjustable output version. The LM2596 Stepdown module is operating at a switching frequency of 150kHz, thus allowing smaller sized filter components than what would be required with lower frequency switching regulators
    Add to wishlist
    Add to cart
    Quick view
    -11%
    Compare

    LM2596 DC-DC Buck Converter Step Down Power Supply Module with Digital Voltage Display

    Original price was: ₨ 450.Current price is: ₨ 400.
    LM2596 DC-DC Buck Converter Step Down Power Supply Module with Digital Voltage Display Features Input voltage range:4 40VDC Output voltage range:1.25-37VDC adjustable Output current:2A voltmeter range: 0 to 40V, error 0.1V Input reverse polarity protection Built in output short protection function Built in thermal shutdown function L x W x H =6.1*3.4*12 cm Weight: 22g LED digital voltmeter tube, the accuracy is adjustable function, can be aimed at your multimeter adjustable accurate. Press the right key to let the display show the input or output voltage. when the right OUT led light, it shows output, the left IN led show input.
    Add to wishlist
    Add to cart
    Quick view
    -29%
    Compare

    MH CD-42 Charge Discharge Module

    Original price was: ₨ 350.Current price is: ₨ 250.
    MH-CD42 module offers simultaneous charge and discharge, lithium battery protection, and a 4 level LED indicator. Connect any kind of 3.7V Lithium battery to have a 5V output with current up to 2.1A.
    Add to wishlist
    Add to cart
    Quick view
    -25%
    Compare

    TP4056 1A Li-Ion Battery Charging Board Micro USB with Current Protection BMS

    ,
    Original price was: ₨ 80.Current price is: ₨ 60.
    This 3.7V Battery Charger TP4056 module is made for charging rechargeable lithium batteries using the constant-current/constant-voltage (CC/CV) charging method. In addition to safely charging a lithium battery, TP4056 BMS Board also provides the necessary protection required by lithium batteries. The TP4056 is suitable for USB power and adapter power supplies. Due to the internal PMOSFET architecture and anti-reverse charging path, no external isolation diodes are required. Specification of TP4056 1A Li-Ion Battery Charging Board Micro USB with Current Protection BMS: Charge module: Linear charging. Current:1A adjustable. Charge precision:1.5%. Input voltage:4.5V-5.5V. Full charge voltage:4.2V ± 1% Led indicator: red is charging Green is fully charged. Input interface:micro USB/mini usb/type-c usb Work temperature:-10° to +85°. Inversed polarity: NO.
    Add to wishlist
    Add to cart
    Quick view
    -14%
    Compare

    XL4015 DC-DC Adjustable Step Down Module

    Original price was: ₨ 290.Current price is: ₨ 250.
    Input voltage range：4～38VDC(Note: input voltage not exceeding 38V). Output voltage range：1.25-36VDC adjustable. Output current: 0-5A. High efficiency up to 96%. Output power: 75W. Built-in thermal shutdown function Built-in current limit function In-Built output short protection function Input reverse polarity protection: None (if required, the high current diode in series with the input). Power Indicator: Yes Short circuit protection: Yes (limit current 8A) Overtemperature protection: (automatically shut off the output after overtemperature) Input reverse polarity protection: No, (if necessary, please enter the string into the high current diode) Installation: two 3mm screws Dimensions(LxWxH): 54 x 23 x 15 mm.
    Add to wishlist
    Add to cart
    Quick view
    -8%
    Compare

    XL6009E1 1.3-35V 3A Auto Step Up/Down Buck/Boost DC-DC Converter

    Original price was: ₨ 400.Current price is: ₨ 370.
    XL6009E1 1.3-35V 3A Auto Step Up/Down Buck/Boost DC-DC Converter Module This is an auto DC-DC step up / down or
    Add to wishlist
    Add to cart
    Quick view
