Features:
Sensitive for LPG, propane, hydrogen
Output voltage boosts along with the concentration of the measured gases increases
Fast response and recovery
Features boost circuit
Adjustable sensitivity
Signal output indicator
Pin Configuration:
Pin No: Pin Name: Description
For Module
1 Vcc This pin powers the module, typically the operating voltage is +5V
2 Ground Used to connect the module to system ground
3 Digital Out You can also use this sensor to get digital output from this pin, by setting a threshold value using the potentiometer
4 Analog Out This pin outputs 0-5V analog voltage based on the intensity of the gas
For Sensor
1 H -Pins Out of the two H pins, one pin is connected to supply and the other to ground
2 A-Pins The A pins and B pins are interchangeable. These pins will be tied to the Supply voltage.
3 B-Pins The A pins and B pins are interchangeable. One pin will act as output while the other will be pulled to ground.
Applications
Gas leakage detector
SKU: 0125 Categories: Gas Sensors, Modules and Breakout Boards, Sensors & Transducers Tags: Alcohol, Benzene, detector, Gas, module, MQ-2, Sensor, Smoke
Description
Specification
Operating Voltage is +5V
Can be used to Measure or detect LPG, Alcohol, Propane, Hydrogen, CO and even Methane
Sensitive for LPG, propane, hydrogen
Analog output voltage: 0V to 5V
Digital Output Voltage: 0V or 5V (TTL Logic)
Preheat duration 20 seconds
Can be used as a Digital or analog sensor
The Sensitivity of Digital pin can be varied using the potentiometer
-14%
0%

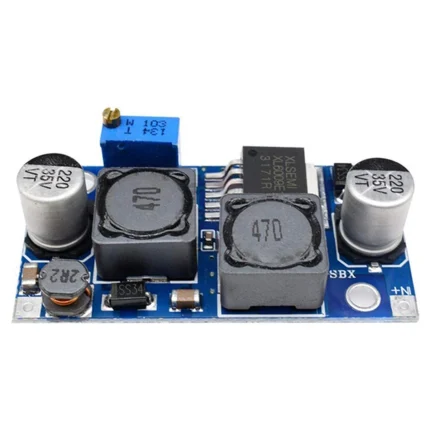

XL6009E1 1.3-35V 3A Auto Step Up/Down Buck/Boost DC-DC Converter
Original price was: ₨ 400.₨ 370Current price is: ₨ 370.
Mq3 Alcohol Sensor Detector Gas Sensor Module In Pakistan
Original price was: ₨ 400.₨ 300Current price is: ₨ 300.

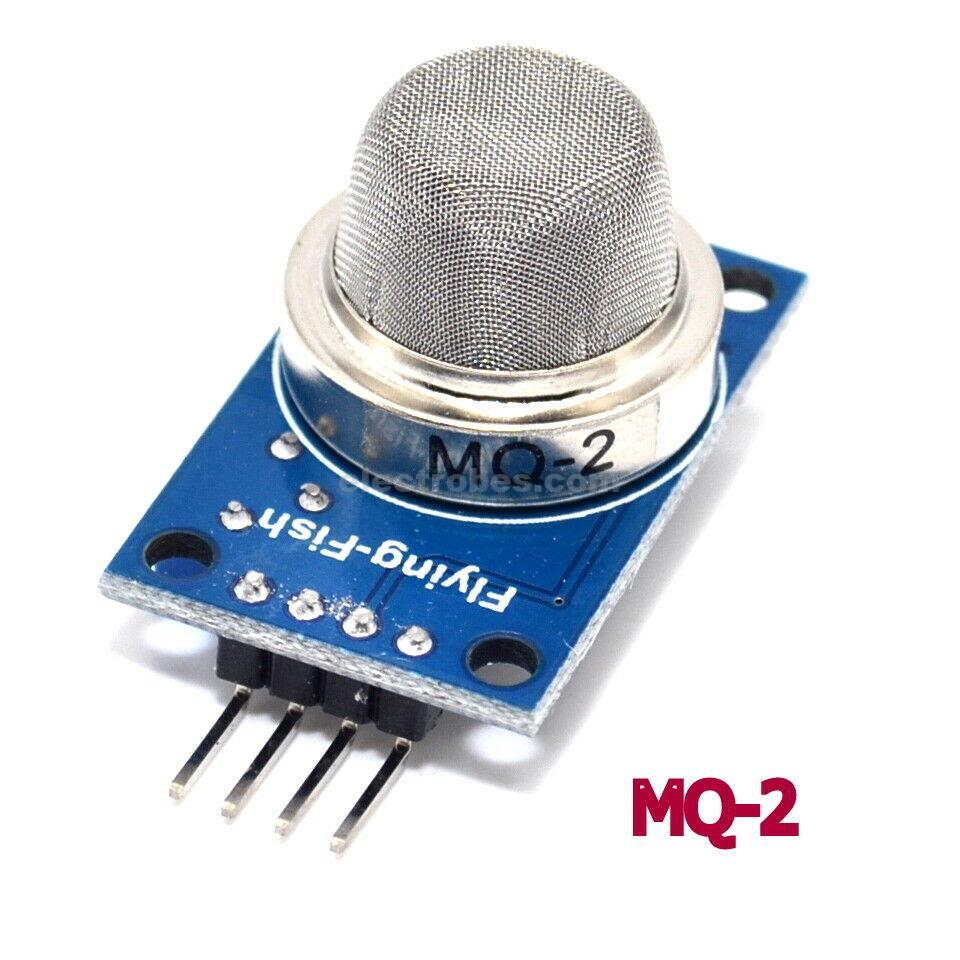

Mq2 Gas Sensor Detector Module In Pakistan
