    TP4056 C Type USB Port 1A 18650 Lithium Battery Charging Board Charger Module Original price was: ₨ 80.Current price is: ₨ 60.

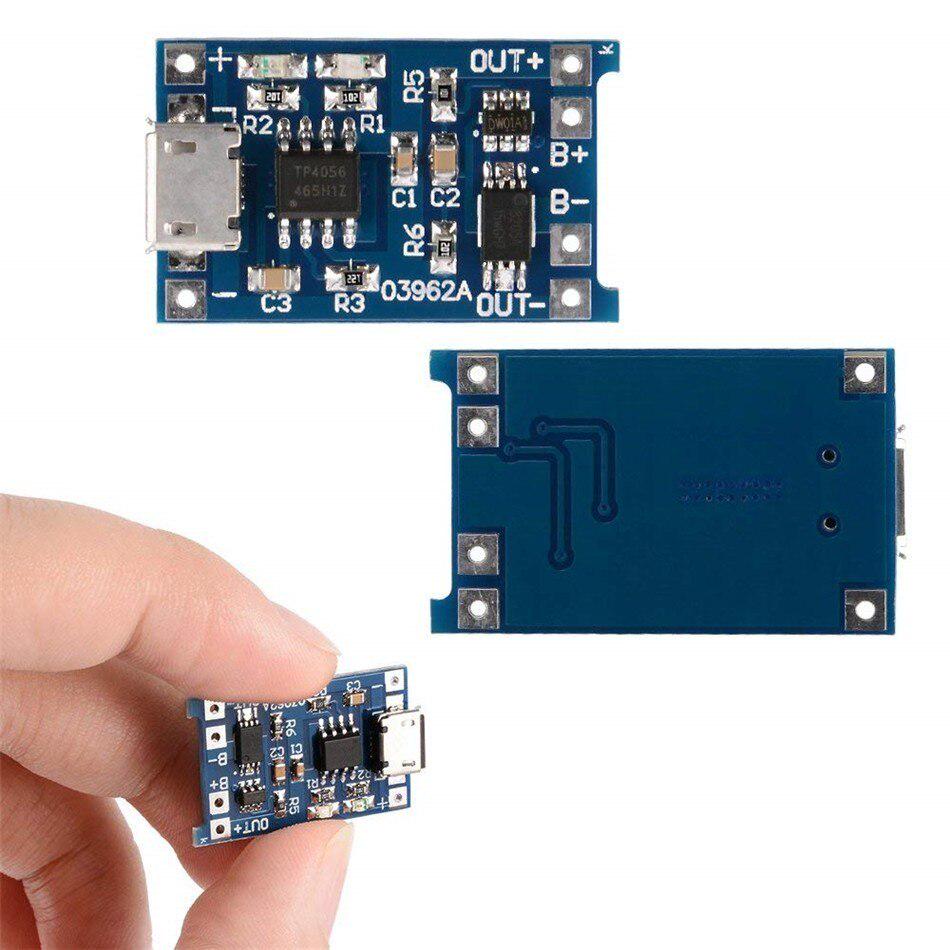

    TP4056 1A Li-Ion Battery Charging Board Micro USB with Current Protection BMS

    Original price was: ₨ 80.Current price is: ₨ 60.

    This 3.7V Battery Charger TP4056 module is made for charging rechargeable lithium batteries using the constant-current/constant-voltage (CC/CV) charging method. In addition to safely charging a lithium battery, TP4056 BMS Board also provides the necessary protection required by lithium batteries. The TP4056 is suitable for USB power and adapter power supplies. Due to the internal PMOSFET architecture and anti-reverse charging path, no external isolation diodes are required.

    Specification of TP4056 1A Li-Ion Battery Charging Board Micro USB with Current Protection BMS:
    Charge module: Linear charging.
    Current:1A adjustable.
    Charge precision:1.5%.
    Input voltage:4.5V-5.5V.
    Full charge voltage:4.2V ± 1%
    Led indicator: red is charging Green is fully charged.
    Input interface:micro USB/mini usb/type-c usb
    Work temperature:-10° to +85°.
    Inversed polarity: NO.

    Compare
    Add to wishlist
    Categories: ,
    Description

    This 3.7V Battery Charger TP4056 module is made for charging rechargeable lithium batteries using the constant-current/constant-voltage (CC/CV) charging method. In addition to safely charging a lithium battery, TP4056 BMS Board also provides the necessary protection required by lithium batteries. The TP4056 is suitable for USB power and adapter power supplies. Due to the internal PMOSFET architecture and anti-reverse charging path, no external isolation diodes are required.

    Specification of TP4056 1A Li-Ion Battery Charging Board Micro USB with Current Protection BMS:
    Charge module: Linear charging.
    Current:1A adjustable.
    Charge precision:1.5%.
    Input voltage:4.5V-5.5V.
    Full charge voltage:4.2V ± 1%
    Led indicator: red is charging Green is fully charged.
    Input interface:micro USB/mini usb/type-c usb
    Work temperature:-10° to +85°.
    Inversed polarity: NO.
