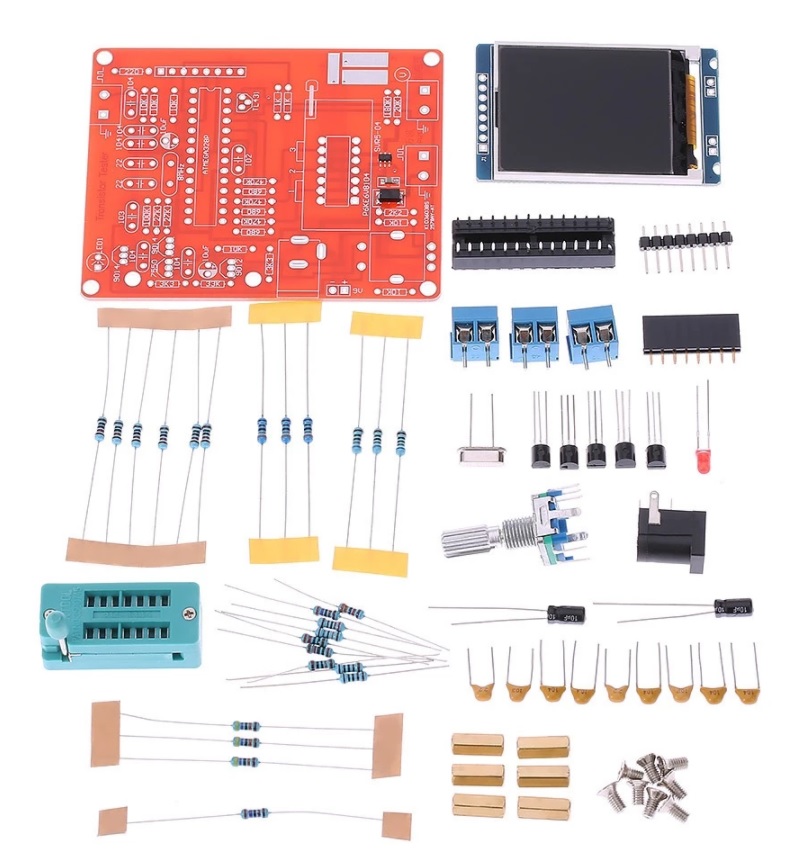

Transistor tester kit GM328

Original price was: ₨ 2000.Current price is: ₨ 1850.

Specifications:
Chip: ATMega328P-PU
LCD display 1.18 ″ 160 × 128 pixels
Operating voltage: 6.8 – 12V DC
PWM generator: 1Hz – 2 MHz; 1 – 99% duty cycle
Operating current: 30mA

Compare
Add to wishlist
Categories: ,
Description

Multifunction transistor tester with automatic detection of NPN, PNP, FET transistors, diodes, double diodes, thyristors, SCR and their pins. The module can even be used as a PWM signal generator up to 2MHz. The module also allows the measurement of capacitors (before connecting them to the board, make sure that they are not charged) and coils.

We sell the module in an assembled state. We recommend the tester study the instructions or user manual.

The module uses ATMega328P-PU as the main chip, it also works on power supply from a 9V battery (power supply range 6.8V – 12V).

Specifications:
Chip: ATMega328P-PU
LCD display 1.18 ″ 160 × 128 pixels
Operating voltage: 6.8 – 12V DC
PWM generator: 1Hz – 2 MHz; 1 – 99% duty cycle
Operating current: 30mA

Measurement:
BJT transistors, FET, diodes, thyristors, SCR…
Resistance: 0.01Ω – 50MΩ
Capacitors: 25pF – 100mF
Coil: 0.01mH – 20H.

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Transistor tester kit GM328”
