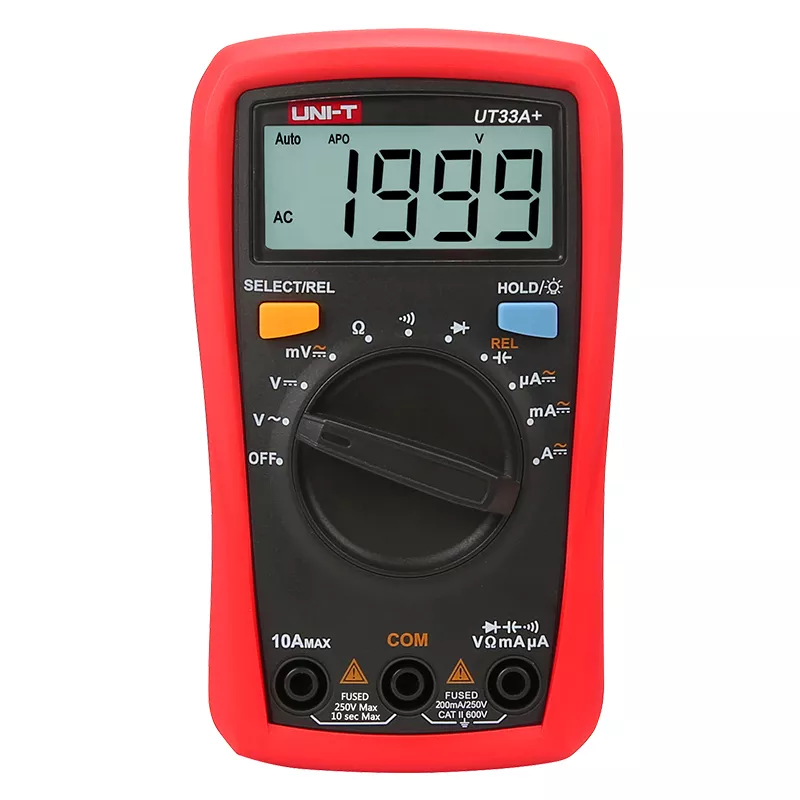

UNI-T UT33A+ Palm Size Digital Multimeter DMM
UNI-T UT33 series is kind of palm size handheld pocketable digital multimeter.
It measures DC/AC Voltage, DC Current and Resistance with accuracy. It has an unique Data Hold function, not available in other palm size meters. Great value! Low cost and convenient for everyday test.
Features Of UNI-T 33A+ DMM:
Professional fully featured palm-size digital multimeter
It measures AC/DC voltage, resistance, diode check etc.
Display: maximum reading 1,999
DC voltage: 200mV/2000mV/20V/200V/500V (+/-0.5%+2)
AC voltage: 200V/500V (+/-1.2%+10)
DC current: 2000uA/20mA/200mA/10A (+/-1.0%+2)
Resistance: 200ohm/2000ohm/20Kohm/200Kohm/20Mohm (+/-0.8%+2)
Temperature: -40’C ~ 1000’C (+/-1.0%+3) / -40’F ~ 1832’F (+/-1.0%+4)
Input impedance for voltage test: 10Mohm
Other functions: Diode testing, continuity buzzer, low power indicating, data hold, backlight
Special Functions Of Digital multimeter UT 33APlus:
Low Battery Indicator: Yes
Data Hold: Yes
Display: Yes
Auto power off: Yes
Diode Test: Yes
Continuity Buzzer: Yes
Function Protection: Yes
Shockproof Protection: Yes
Operation Method: Auto Range
Powered by: 2 x AAA Battery
Specifications
Specifications Range UT33A+
DC voltage (V) 200mV/2V/20V/200V/600V ±(0.5%＋2)
AC voltage (V) 600V ±(0.7%+3)
DC current (A) 10A ±(1%+2)
AC current (A) 10A ±(1.2%+3)
Resistance (Ω) 200Ω/2kΩ/20kΩ/200kΩ
/2MΩ/20MΩ/200MΩ ±(0.8%+2)
Capacitance (F) 2mF ±(4%+8)
Features
Display count 2000
Auto power off/Auto backlight off √
Diode test/Continuity buzzer √
2m drop test/ Test probe holder √
Range selection Auto
General Characteristics
Power 1.5V battery (R03) x 2
Display 66mm x 51mm
Product net weight Red and grey
Product color 206g (batteries included)
Product size 134mm x 77mm x 47mm
Standard accessories Batteries, test leads
