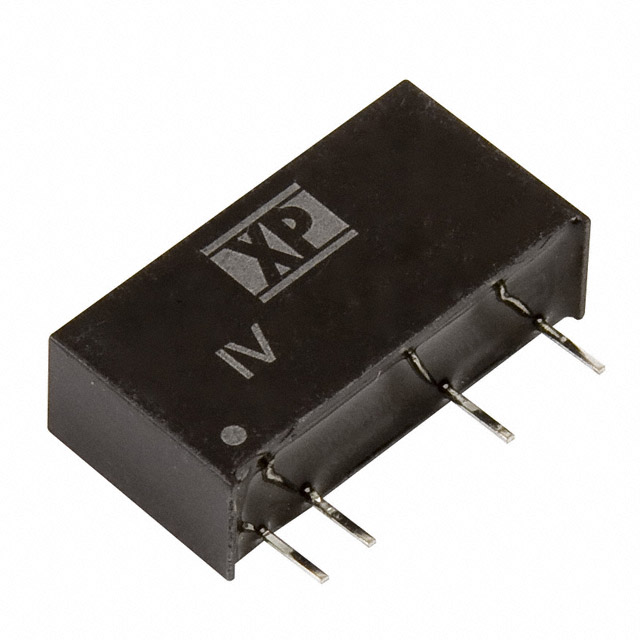

Type
Description
Select All
Category
Power Supplies – Board Mount
DC DC Converters
Mfr
XP Power
Series
IV (1W)
Packaging
Tube
Part Status
Active
Type
Isolated Module
Number of Outputs
1
Voltage – Input (Min)
4.5V
Voltage – Input (Max)
5.5V
Voltage – Output 1
15V
Voltage – Output 2
–
Voltage – Output 3
–
Current – Output (Max)
66mA
Power (Watts)
1 W
Voltage – Isolation
3 kV
Applications
ITE (Commercial)
Features
–
Operating Temperature
-40°C ~ 85°C
Efficiency
76%
Mounting Type
Through Hole
Package / Case
7-SIP Module, 4 Leads
Size / Dimension
0.77″ L x 0.24″ W x 0.39″ H (19.5mm x 6.0mm x 10.0mm)
Control Features
–
Standard Number
62368-1
Base Product Number
IV0515
-4%
IW4809SA price in pakistan
Original price was: ₨ 3500.₨ 3250Current price is: ₨ 3250.
832A-1A-F-S 12VDC 30A 4Pins SPST General Purpose Power Relays
Original price was: ₨ 350.₨ 290Current price is: ₨ 290.
XP Power IV0515SA Price In pakistan
Original price was: ₨ 3500.₨ 3350Current price is: ₨ 3350.
