The module is equipped with the ZMCT103C series of small high-precision current transformers and high-precision op amp circuits for accurate sampling and proper compensation of signals. It is convenient for signal acquisition of AC power within 5A. The corresponding output analog AC signal can be adjusted. The required output voltage can be adjusted according to the potentiometer (adjusting the amplification ratio, the amplification range is 0-100 times), but the maximum voltage at the output (OUT) will not exceed 1/2 VCC:Features
ZMCT103C parameters
Rated input current: 5A
Rated output current: 5mA
Change ratio: 1000:1
Phase difference: less than or equal to 20′ (100Ω)
Linear range: 0-10A (100Ω)
Linearity: 0.2%
Precision level: 0.2
Isolation withstand voltage: 3000V
Working temperature: -40 ° C ~ 70 ° C
Sealing material: epoxy resin
Module supply voltage: 5-30V DC
Package Include:

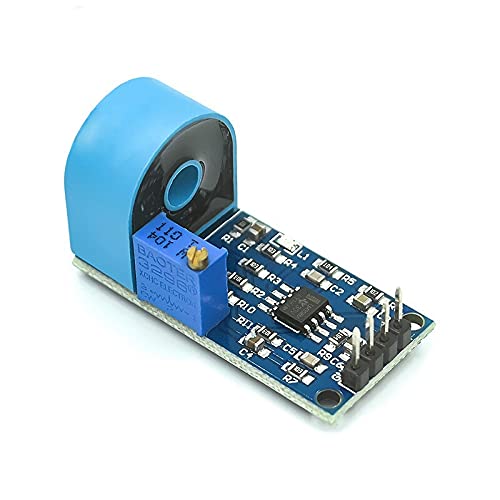

1 x ZMCT103C 5A Range Single Phase AC Active Output Current Transformer Module
-22%
0%
ACS758 50A Range Hall Effect Linear Current Sensor Module
Original price was: ₨ 1200.₨ 1025Current price is: ₨ 1025.
MG945 Servo Moter in Pakistan
Original price was: ₨ 950.₨ 850Current price is: ₨ 850.
Zmct103c 5a Range Single Phase Ac Active Output Onboard Precision Micro Current Transformer Module Current Sensor For Arduino
Original price was: ₨ 450.₨ 350Current price is: ₨ 350.
Features
ZMCT103C parameters
Rated input current: 5A
Rated output current: 5mA
Change ratio: 1000:1
Phase difference: less than or equal to 20′ (100Ω)
Linear range: 0-10A (100Ω)
Linearity: 0.2%
Precision level: 0.2
Isolation withstand voltage: 3000V
Working temperature: -40 ° C ~ 70 ° C
Sealing material: epoxy resin
Module supply voltage: 5-30V DC
