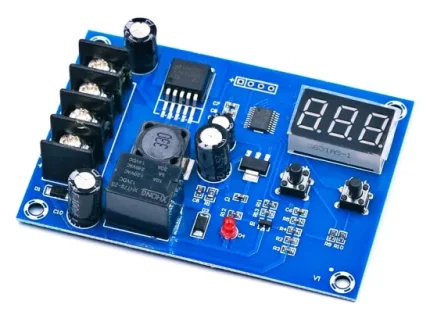

XH-M603 Battery Charge Controller Module
Quick specifications of the HW-632 (XH-M603) module (copied from the seller’s page) are:
Input Voltage: DC 10V to 30V
Display Precision: 0.1V
Control Precision: 0.1V
Voltage Tolerance: ±0.1V
Output Type: Direct Output
Battery Voltage: 12V to 24V
Dimension(mm): 82 x 58 x 18
It accomplishes this with a small microcontroller, two voltage regulator chips, a bunch of discrete components, two microswitches, a PCB screw terminal block, an electromagnetic relay, one red LED and a 3-digit LED display. All in all, it looks like a compact module.
Below you can see an annotated figure of the HW-632/XH-M603 module.
Xh-w3001 220v 10a W3001 Digital Temperature Controller
XK-W3001 Digital Temperature Controller: Your Precise Temperature Management Solution
The XK-W3001 is a reliable and accurate digital temperature controller designed to meet your precise temperature control needs. With its wide temperature range, high accuracy, and durable construction, the XK-W3001 is a versatile tool for various applications.
Key Features:
Accurate Temperature Control: Offers precise temperature control with a resolution of 0.1°C.
Wide Temperature Range: Covers a wide range from -50°C to 110°C.
Durable Construction: Features a flame-retardant ABS housing for long-lasting performance.
Waterproof Probe: The stainless steel probe is waterproof for reliable use in various environments.
Easy Installation: Can be installed directly or embedded into industrial control panels.
Versatile Applications: Suitable for hatching, air conditioning systems, and other temperature-sensitive applications.

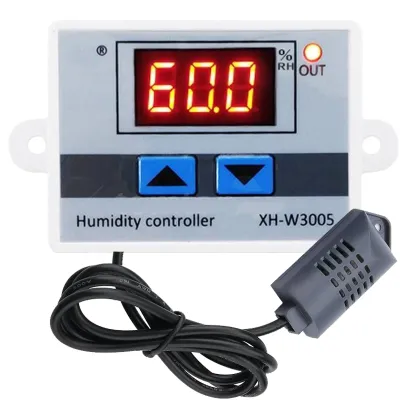

XH-W3005 Digital Humidity Controller
Product Name: Microcomputer Humidity Control Instrument
Product model: XH-W3005
Supply voltage: 220v or 12v
Control range: 0%-99%RH
Control accuracy: 0.1% RH
Measurement accuracy: +-2%RH
Load power: 1500W
Output type: direct output
Sensor: chip type
Appearance size: 60 x 45 x 31mm
Instructions:
Connect to the Power supply, display Instructions on humidity
Set start the humidity: Press the UP button display to start the humidity, long-press about 3s the start the humidity flashing, then press the Up or Down adjust the set
Set to stop the humidity: Press the Down button display Stop the humidity, long-press about 3s the Stop the humidity flashing, then press the Up or Down adjust the set
Restore the factory settings: press the Up and Down buttons at the same time, will display 888 then will Automatically detect the humidity
Package Include:
1 x Digital Humidity Controller
1 x Humidity Sensor

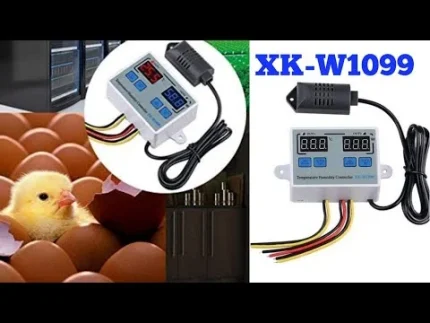

XK-W1099 Digital Temperature And Humidity Controller 10A Price in Pakistan
W1099 Digital Temperature And Humidity Controller 10A Specification:
Model: XK-W1099
Input voltage: AC110~220V± 10%, DC12V
Measuring temperature range: -20°～+80°
Measuring humidity range: 00%RH～+100%RH
Accuracy: ±1°, 0.1%RH
Relay output contact capacity: MAX 10A Direct Output
Shell material: PC + ABS fireproof
Sensor length: 1m
XL4015 5A Step Down Module with Digital Voltmeter
XL4015 5A Step Down Module with Digital Voltmeter
The module comes equipped with a voltmeter, ammeter, power meter, and a USB interface for charging digital products.
A buck converter or step-down converter is a DC-to-DC converter that steps down voltage (while stepping up current) from its input (supply) to its output (load). It is a class of switched-mode power supply. This product is a 180 KHz fixed frequency PWM buck (step-down) DC/DC module, capable of driving a 5A load with high efficiency, low ripple, and excellent line and load regulation. The module with a voltage meter to display the input voltage and output voltage, and the voltage can be corrected through the button to improve the accuracy of the voltmeter
XL4015 DC-DC Adjustable Step Down Module
Input voltage range：4～38VDC(Note: input voltage not exceeding 38V).
Output voltage range：1.25-36VDC adjustable.
Output current: 0-5A.
High efficiency up to 96%.
Output power: 75W.
Built-in thermal shutdown function
Built-in current limit function
In-Built output short protection function
Input reverse polarity protection: None (if required, the high current diode in series with the input).
Power Indicator: Yes
Short circuit protection: Yes (limit current 8A)
Overtemperature protection: (automatically shut off the output after overtemperature)
Input reverse polarity protection: No, (if necessary, please enter the string into the high current diode)
Installation: two 3mm screws
Dimensions(LxWxH): 54 x 23 x 15 mm.
XL6009 DC-DC Step Up Boost Converter 5 – 32V to 5 – 35V 10W (4A)
XL6009 DC-DC Step Up Boost Converter 5 – 32V to 5 – 35V 10W (4A)
Xl6009 booster module is a 4A switching current high performance BOOST module, with the third generation of high frequency switch technology as the core chip, the performance is far superior to LM2577. It can be used for booster power supply, DIY adjustable mobile power supply, booster charger, etc.
XL6009 Digital DC-DC Step Up Boost Converter 5 – 32V to 5 – 35V 10W (4A)
L6009 DC-DC Boost Converter 4A Adjustable Step-Up 5-32V to 5V-40V + LED Voltmeter
XL6009 is a 4A switch current high performance boost ( BOOST ) module. This module uses the second-generation high-frequency switching technology XL6009E1 as the core chip, and its performance far exceeds that of the first-generation technology LM2577 . The XL6009 booster module has lower cost and better performance, and the LM2577 module is about to be eliminated.
Characteristics:
XL6009E1 1.3-35V 3A Auto Step Up/Down Buck/Boost DC-DC Converter

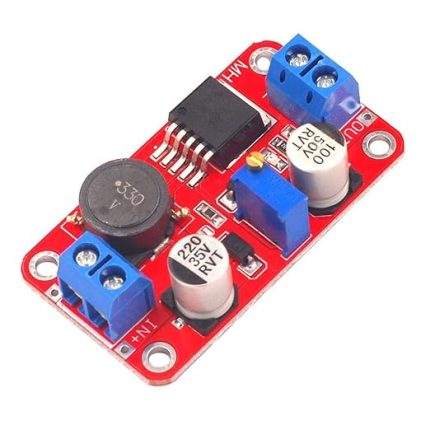

XL6019 5A DC-DC Step Up Boost Converter in Pakistan
Input Voltage: 3-40V
Output Voltage: 5-45V (adjustable)
Input Current: 0-5A
Conversion Efficiency: Up to 94%
Switching Frequency: 220kHz
Output Ripple: Less than 100mV
Load Regulation: ±0.5%
Voltage Regulation: ±0.5%
Working Temperature: -40°C to +150°C
Reverse Polarity Protection: Yes
Size: 50 x 28 x 13mm
Order Your XL6019 DC-DC Step-Up Converter Today!
XL7015 DC to DC Buck Converter Step Down Module In Pakistan
The XL7015 DC-DC step-down module is a high efficiency, high voltage step-down DC-DC converter that provides high 0.8A output current capability, low ripple, excellent linearity, and load regulation, and high input voltage. 80V, far more than 2596 and other modules. The chip has multiple protection mechanisms built in. Can be applied to electric vehicle controllers, etc.
Features:
5 v to 80 v input voltage range wide.
The output voltage from 5 v to 20 v adjustable.
The minimum pressure drops 1 v.
0.8 The biggest switch current.
Recommend the output power is less than 7 w.
Shut off built-in overheating protection, output short circuit protection, over current protection.
Good linear with load regulation.
The board size: 16 mm * 44 mm.
Wiring Instructions:
VIN: input voltage (5 v - 80 - v).
The GND: input voltage side.
The VOUT: output voltage (5 v - 20 v).
The GND: output voltage to end.
Package Includes:
1XXL7015 DC-DC Buck Converter Step Down Module 5V-80V Wide Voltage Input 7005A Super Than LM2596
